|Voltage:||3.7 Volt||Capacity:||1400 MAh|
|Cell:||LITHIUM ION POLYMER BATTERY||Application:||Wireless Mouse Batteries|
|Cycle Life:||500 Times||Battery Type:||Soft Packs|
|Protection:||Over-charge, Over-Discharge, Over-current, Short Circuit, High Temperature||Key Words 1:||3.7 V RECHARGEABLE LITHIUM POLYMER BATTERY|
|Key Words 2:||3.7 Rechargeable Battery||Key Words 3:||3.7 Volt Battery Rechargeable|
|Charge Method:||CC/CV||Battery Size:||11*26*53 MM|
|Battery Weight:||14 G||Certificate:||CE, UL, UN38.3, MSDS,IEC62133, KC,|
|Place Of Origin:||Shenzhen China||Working Temperature:||-20℃ ~60℃|
|Discharge Current:||Within 1C Rate||Storage Humidity:||65±20% RH|
|Internal Impedance:||≤120mΩ||Charging Voltage:||4.25 V|
|Cut-off Voltage:||2.75 Volt||Open Voltage:||3.7-3.75V|
5.18Wh lithium polymer rechargeable battery,
1400mAh lithium polymer rechargeable battery,
5.18Wh 3.7 v lipo battery

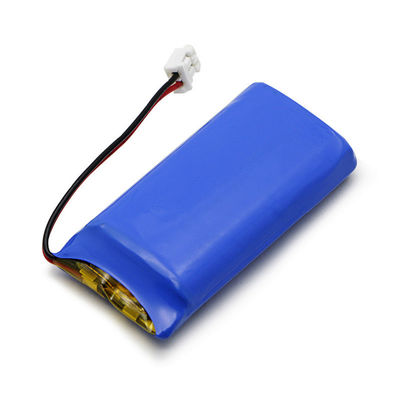

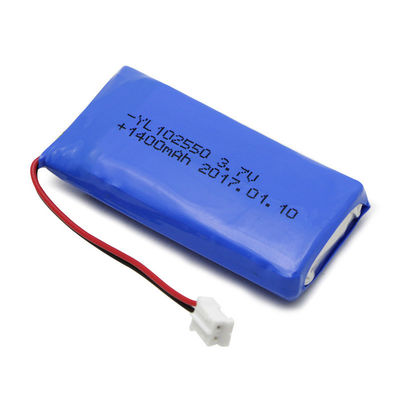

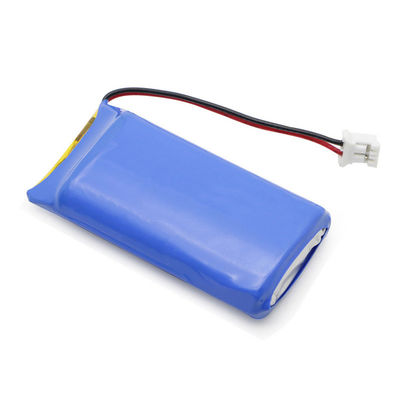

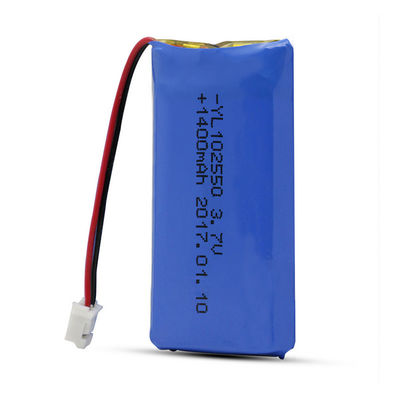

PL102550 LI POLYMER BATTERY PACK 1400mAh 3.7 V RECHARGEABLE LITHIUM POLYMER BATTERY
The model battery can be replaced for:
cleansing instrument batteries, alacarte machine batteries, smart wear batteries, gps navigator batteries, pos machine batteries, protable power batteries, learning machine tablet batteries , car navigation batteries, MP3 batteries, MP4 batteries, MP5 batteries, card speaker batteries, wireless mouse batteries, mobile phone millet display PSP built-in battery batteries, electronic cigarette batteries, laser pointer batteries, electric toothbrush batteries, voice recorder batteries, fishing light batteries, 3D glasses batteries, Apple peripheral power batteries, tablet batteries, Mobile DVD batteries, laptop battery, wireless monitoring equipment batteries, medical equipment batteries, various instruments batteries, beauty instruments batteries, Bluetooth headphones batteries
|Product Name||Custom 3.7 V RECHARGEABLE LITHIUM POLYMER BATTERY|
|Nominal Voltage||3.7V (Customized 3.2V 3.7V12V 24V 36V... 72V)|
|Nominal Capacity||1400mAH (Customized 2.6Ah, 3.5Ah...200Ah)|
|Standard Charge Current||280 mA|
|Max Charge Current||700 mA|
|Charge Cut-off Voltage||4.25 V|
|Standard Discharge Current||280 mA|
|Max Cont Discharge Current||700 mA|
|Discharge Cut-off Voltage||2.75 V|
|Material||Lithium Cobalt battery ( or LiFePO4 battery, NMC battery )|
|Cell/ Brand||KAYO LIPO (or Panasonic 18650, Sumsung 18650, Sony 18650)|
|Cell Type||Li polymer battery(or Custom Lithium Ion battery)|
|Temperature Range||Charge temperature: 0°C to 45°C|
|Discharge temperature: -20°C to 60℃|
|Storage temperature: -20°C to 60℃|
|Life Cycle||More than 1000cycles|
|Package Material||Shrinked PVC|
|Certification||IEC 62133, UN38.3, MSDS, KC, CB|
|Key Words||Li-ion battery pack, 18650 battery pack, Lithium Ion battery pack, Rechargeable Lithium battery pack, 18650 Lithium battery pack, Custom Battery pack,|
One pc in a PE bag, and then in a standard export carton or Custom-made Package.
① By express UPS/DHL/FEDEX/TNT (It takes 3-5 days to arrive).
② By airfreight (It takes about 3~7 days to arrive) .
③ By sea shipment (It takes about 35 days to arrive).
Delivery Time: 3-5 days for samples, 8-20 days for mass production, depend on the QTY.
We provide one-stop battery power solution, including cell selection, battery pack design, PCM/BMS design, battery pack assembly, OEM Packing and after sales service.
3. Q: How do you control your product quality.
A: We take ISO9001 quality system into our production and all the production are standardized under 7S. Absorbed the advanced management experiences from our Japan team in R & D, Production and Quality control, KAYO has been implementing the strictest quality control system and integrated quality and service traceability system. All the product are of traceability from the material input to finished products delivery, Inspection and testing are implement during the whole production steps. and the Comprehensive test will be taken before the delivery;
4. Q: What certificates do you have?
A: ISO9001 quality system, IATF16949 Automotive Industry Management System, ISO140001 Environmental System, and GB/T29490-2013 System. And most of the products have passed the UL, UN38.3, ROSH, CE, CB, BIS, KC, MSDS certificates.
5. Q: What is your warranty?
A:We offer 2 years warranty for all our battery pack. All the KAYO products are insured by the Third Party PICC PROPERTY AND CASUALTY COMPANY LIMITED. the best service are assured
6. Q: What's your payment term?
A: We can accept T/T and L/C for standard order; West Union and T/T for samples are acceptable;
7. Q. Do you have any MOQ limit?
A: Generally we request no MOQ limit to support every project of our customers if the model battery is assembled with 18650 lithium Rechargeable battery. And if the model batteries are the custom-made Lithium Ion Polymer batteries, then it will depended by the battery power and it will generally be requiested with 3000 pcs per model.
8. Q. How long will be the Lead time?
A: it depends on order quantity. Usually the delivery date for samples: 3~5 days, for mass production: 5~25 days,
9. Q. How do you ship the goods and how long does it take to arrive?
A: The goods are generally shipped by Express Delivery (UPS/DHL/TNT/FEDEX etc). and we can also ship the batteries by Air Cargo or by sea. It takes 3-5 days by Express. And it will take about 28 days by sea.
10. Q. How to proceed with an order?
A: Step 1, let us know your requirements such as voltage, capacity, continuous discharge current, peak discharge current,work condintion temperature and application. Step 2, We quote according to your requirements. Step 3,You confirms the prices and samples ; Step 4, You place a formal order as your need QTY. Step 5, We provide the proforma invoice according to your order and you pay 30% deposit of the order and we arrange the production; Step 6, when the goods are ready and we will inform you finish the balance payment of the order and we ship out the goods as soon as the payment is confirmed.
