Product Details:
|
| Product Name: | Heated Jacket Battery Pack | Battery Type: | Rechargeable Battery Pack For Heated Vest |
|---|---|---|---|
| Key Feature: | Custom Lithium Battery Packs | Cell: | Lithium Polymer Battery |
| Certificate: | UN38.3, MSDS, ROHS, IEC62133, CB | Voltage: | 3.7 V |
| Capacity: | 4000 MAh | Application: | Heated Jacket, Heated Vest, Heated Clothing |
| OEM/ODM: | Acceptable | Warranty: | 1 Year |
| Cycle Life: | 500 Times | Protection: | Over-Discharge, Over-charge, Over-current, High Temperature |
| Battery Size: | 14.5* 52* 70 Mm | Weight: | 77 G |
| High Light: | NMC Custom Lithium Battery Packs,Custom Lithium Battery Packs 3.7V,4000mAh Rechargeable Lithium Battery Pack |
||

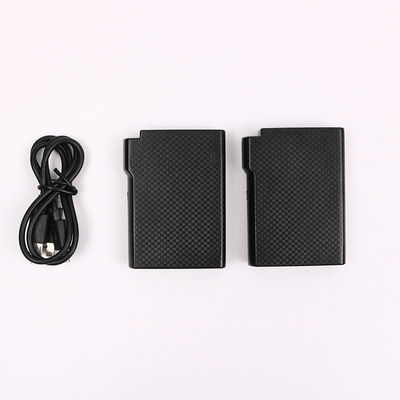

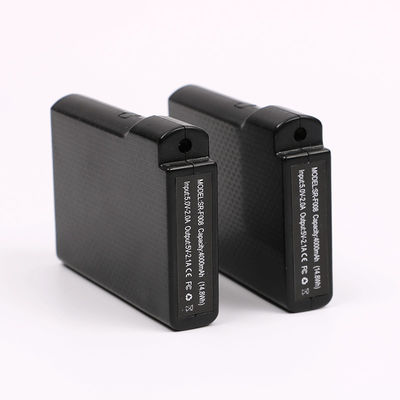

3.7V 4000mAh Heated Clothing Batteries Custom Lithium Battery
| Custom Lithium Ion Battery Pack | |
| Product Name | Custom 3.7V 4000mAh rechargeable battery for heated clothing |
| Nominal Voltage | 3.7 V (Customized 3.2V 3.7V12V 24V 36V... 72V) |
| Nominal Capacity | 4000 mAH (Customized 2.6Ah, 3.5Ah...200Ah) |
| Standard Charge Current | 800 mA |
| Max Charge Current | 2000 mA |
| Charge Cut-off Voltage | 4.2 V |
| Standard Discharge Current | 800 mA |
| Max Cont Discharge Current | 4000 mA |
| Discharge Cut-off Voltage | 2.75 V |
| Material | NMC battery ( or LiFePO4 battery, Lithium Cobalt battery ) |
| Cell/ Brand | Sony ( or Sumsung, Samsung,Sanyp, Panasonic, KAYO LIPO ) |
| Cell Type | li ion 18650 battery( or Custom Lithium Ion battery ) |
| Temperature Range | Charge temperature: 0°C to 45°C |
| Discharge temperature: -20°C to 60℃ | |
| Storage temperature: -10°C to 50℃ | |
| Life Cycle | More than 500 cycles |
| Package Material | Shrinked PVC |
| Certification | IEC 62133, UN38.3, MSDS, KC, CB, UL2054 |
| OEM/ODM | Acceptable, based on client's needs |
Package:
One pc in a PE bag, and then in a standard export carton or Custom-made Package.
Delivery Methods:
① By express UPS/DHL/FEDEX/TNT (It takes 3-5 days to arrive).
② By airfreight (It takes about 3~7 days to arrive) .
③ By sea shipment (It takes about 35 days to arrive).
Delivery Time: 3-5 days for samples, 8-20 days for mass production, depend on the QTY.
Why choose KAYO:
1. KAYO original factory can provide competitive factory price
2. Long warranty up to 12 months
3. OEM/ODM is acceptable, base on client's needs
4. Fast delivery, ship goods on time
5. Use famous brand A grade 18650 battery cell
6. Optional chargers available
7. With advanced BMS (Battery Management System)
Customized:
Capacity: 10Ah, 15Ah, 17.5Ah, 20Ah, 23Ah, 30Ah, 50Ah, 100Ah, 200Ah...
Voltage: 12V, 24V, 36V, 48V, 51.2V, 72V
Combination: 4S2P/ 10S6P/10S8P/12S8P/16S8P/13S10P
Battery function: BMS, bluetooth, CANBUS, RS485, display, ect
Company Information:
We provide one-stop battery power solution, including cell selection, battery pack design, PCM/BMS design, battery pack assembly, OEM Packing and after sales service.
2. Q: How to customize?
A: Please provide your detailed requirements, such as voltage, capacity, dimension, charge and max discharge current, and other function requirements, etc. Our engineers will help you to evaluate the suitable solution and quotation base on your needs.
3. Q: Do you offer power solution?
A: We offer one-stop power solutions that based on client's needs, including pack design/ external case design/ BMS design, which saves your design time and cost for customers.
4. Q: What's your warranty for products?
A: We offer 2 years warranty for all our battery pack, we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means after 2000@80% DOD, there will still around 60% capacity left, you can use it at least 5 years for normal 1 time charge and discharge everyday.
5. Q:Can I get a lower price if I order large quantities?
A:Yes, lower prices with more bigger size orders.
