Product Details:
|
| Application: | Emergency Mobile Energy Storage Power Supply | Charge Method: | CC/CV |
|---|---|---|---|
| DC Input: | 12V-2A | Protection: | Over-charge, Over-current, Over-Discharge, Short Circuit, High Temperature |
| Cell: | Samsung Lithium Ion Battery | Cycle Life: | 1000 Times |
| OEM/ODM: | Acceptable | Battery Type: | Rechargeable Lithium Battery Packs |
| Weight: | 7.5 Kg | Key Words 1: | Portable Charging Station |
| Certificate: | MSDS, ROHS, IEC62133, CB, UN38.3, KC | Warranty: | 12 Month |
| Place Of Origin: | Shenzhen China | Working Temperature: | -20℃ ~60℃ |
| Key Words 3: | Portable Power Bank | Discharge Current: | Within 1C Rate |
| Storage Humidity: | 65±20% RH | Dimension: | 390*250*290 Mm |
| Key Words 2: | PORTABLE BATTERY PACK WITH AC OUTLET | USB Output: | 2*5V=2.4A |
| Highlight: | 300Wh Portable Power Source,ROSH Portable Power Source,300Wh portable charging station |
||

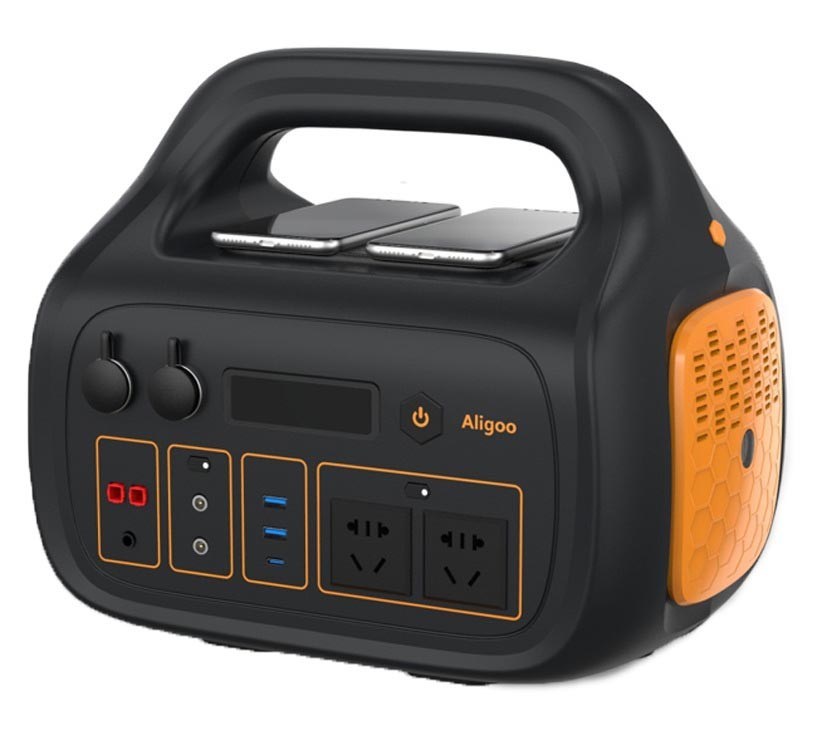

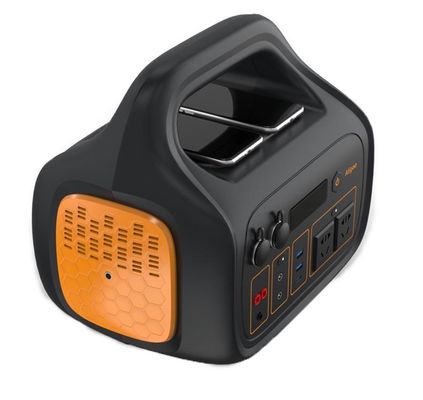

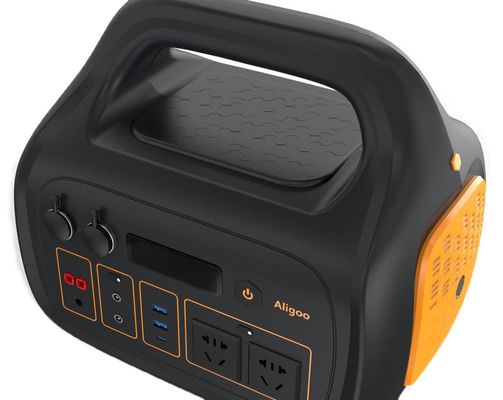

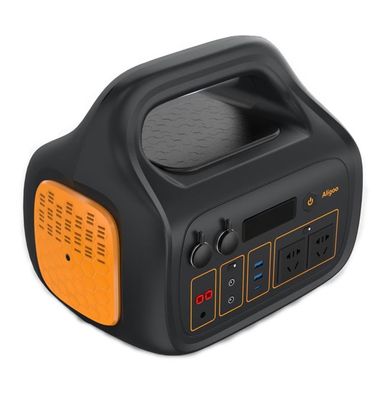

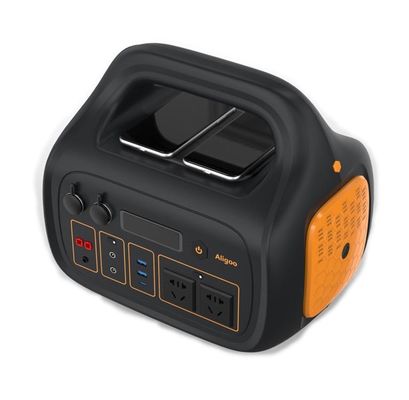

300Wh Portable Power Battery Station by Electrical Harness Manufacturers
The model battery can be replaced for:
Starting power supply, Poartable power supply, emergency power supply, Power Bank
KAYO200-300Wh
Battery capacity 285600mah
Weight: 7.5 kg
Dimension: 390 * 250 * 290
DC input: 15v-2a (supporting 12v-24v)
Charging output port: 12v-12a
AC output: 220 v-3a, 50 Hz, continuous discharge 1000W, peak discharge 1500W, AC rated output energy 200Wh
USB output: 2 * 5V = 2.4a (qc3.0)
Battery: lithium ion Rechargeable battery pack
Number of cycles: > = 800
Working temperature: -10-40 degrees
Charging temperature: 0-40 degrees
Protection system: overcharge protection, over discharge protection, over current protection, over temperature protection, short circuit protection and over-voltage protection
Warranty: 1 year
Certificate: UN38.3 MSDS RoHS
[function description of operation surface]
Power: press the power key for 2 seconds to turn on and off
DC switch: switch on / switch off
USB switch: switch on / switch off
AC switch: switch on / switch off
Input: DC input charging
Indicator: charging indicator
Input W: input power
Output W: output power
Percentage: percentage of electricity
DC: DC working indicator
USB:USB Work indicator
AC: AC work indicator
Red triangle type: flashing indicates high temperature
[precautions for use]
1: When the battery temperature reaches 55 ℃ after discharge, the device is prohibited from charging. After 1 hour of static charging, it is normal to charge (the time depends on the local temperature)
2: When the power on / off key is stopped, please press and hold the power key to turn off the power
3: DC USB AC indicates that the output port is on, and the corresponding device can be powered
4: When not using the power output port, please press 567 key or power key to turn off the power to save power
5: Low temperature may affect the battery capacity of the product. The product can be charged in the temperature range of 0 ℃ - 40 ℃, and supply power to the equipment in the temperature range of - 20 ℃ to 60 ℃
6: For the first time, it is recommended to fully charge the battery to avoid the inconvenience caused by insufficient power
One pc in a PE bag, and then in a standard export carton or Custom-made Package.
Delivery Methods:
① By express UPS/DHL/FEDEX/TNT (It takes 3-5 days to arrive).
② By airfreight (It takes about 3~7 days to arrive) .
③ By sea shipment (It takes about 35 days to arrive).
Delivery Time: 3-5 days for samples, 8-20 days for mass production, depend on the QTY.
