Product Details:
|
| Capacity: | 30 AH | Voltage: | 12.8V |
|---|---|---|---|
| Cell: | Lithium Iron Phosphate Cells | Application: | Solar Products, UPS, Outdoor Portable Power Supply |
| Cycle Life: | 2000 Times | Battery Type: | LiFePO4 Battery Pack |
| Protection: | Over-Discharge, Over-current, Over-charge, Balance Charge/Discharge, Short Circuit, High Temperature | Key Words 1: | Lithium Phosphate Battery |
| Key Words 2: | Lifepo4 Battery Pack | Battery Size: | 170*145*67 Mm |
| Certificate: | ROHS, IEC62133, MSDS, CB, UN38.3, KC | Discharge Current: | Within 1C Rate |
| Storage Humidity: | 65±20% RH | Internal Impedance: | ≤45mΩ |
| Charging Voltage: | 14.4 Volt | Cut-off Voltage: | 10 Volt |
| Highlight: | UPS Lithium Iron Phosphate Battery,12.8V 30AH Lithium Iron Phosphate Battery,12.8V 30AH lithium phosphate battery |
||

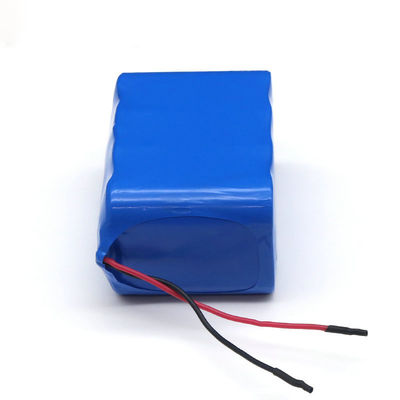

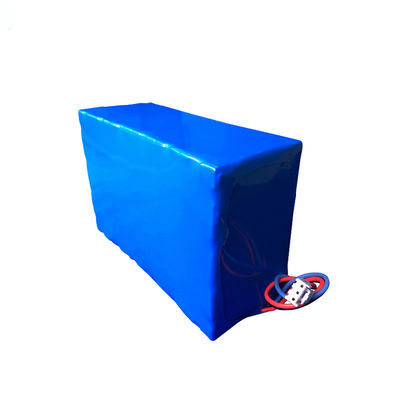

High-Capacity 18650 Lithium-ion Battery Pack | 12.8V 30AH UPS LiFePO4 Lithium Iron Phosphate Battery for Electric Material Handling Equipment | UN38.3 Certified
| Product Specification | |
| Product Name | 30Ah 12.8 Volt Lithium Ion Phosphate Batteries |
| Nominal Voltage | 12.8 V (Customized 3.2V 3.7V12V 24V 36V... 72V) |
| Nominal Capacity | 30000 MAH (Customized 2.6Ah, 3.5Ah...200Ah) |
| Standard Charge Current | 15000 mA |
| Max Charge Current | 30000 mA |
| Charge Cut-off Voltage | 14.4 V |
| Standard Discharge Current | 15000 mA |
| Max Cont Discharge Current | 30000 mA |
| Discharge Cut-off Voltage | 10 V |
| Material | LiFePO4 battery (or NMC battery, Lithium Cobalt battery) |
| Cell Type | Lithium Ion battery(or Custom Li polymer battery ) |
| Temperature Range | Charge temperature: 0°C to 45°C |
| Discharge temperature: -20°C to 60℃ | |
| Storage temperature: -10°C to 50℃ | |
| Life Cycle | More than 2000 cycles |
| Package Material | Shrinked PVC |
| Certification | MSDS, ROHS, KC, IEC62133, CB, UN38.3...etc |
| Key Words | Li-ion battery pack, 18650 battery pack, Lithium Ion battery pack, Rechargeable Lithium battery pack, 18650 Lithium battery pack, Custom Battery pack |
Ultra-High Capacity & Long Runtime: The large form factor enables a high cell count, providing exceptional energy storage for extended operation between charges, reducing downtime for end users.
Heavy-Duty High-Current Performance: The heavy-gauge wiring and industrial multi-pin connector support high continuous discharge rates, perfectly matching the power demands of heavy-load equipment.
Rugged Industrial Design: The thick PVC encapsulation provides excellent vibration, shock, and environmental resistance, ensuring stable performance in harsh industrial and outdoor operating conditions.
Full Customization Capability: Voltage capacity, discharge rate, connector type, and wire length can all be fully customized to meet specific application requirements. Standard models include an integrated BMS (Battery Management System) for comprehensive protection against over-charge, over-discharge, over-current, short-circuit, and over-temperature conditions.
Long Cycle Life & High Reliability: Built with industrial-grade 18650 cells, delivering consistent performance over thousands of charge-discharge cycles for long-term use.
One pc in a PE bag, and then in a standard export carton or Custom-made Package.
Delivery Methods:
① By express UPS/DHL/FEDEX/TNT (It takes 3-5 days to arrive).
② By airfreight (It takes about 3~7 days to arrive) .
③ By sea shipment (It takes about 35 days to arrive).
Delivery Time: 3-5 days for samples, 8-20 days for mass production, depend on the QTY.
We provide one-stop battery power solution, including cell selection, battery pack design, PCM/BMS design, battery pack assembly, OEM Packing and after sales service.
3. Q: How do you control your product quality.
A: We take ISO9001 quality system into our production and all the production are standardized under 7S. Absorbed the advanced management experiences from our Japan team in R & D, Production and Quality control, Unitech has been implementing the strictest quality control system and integrated quality and service traceability system. All the product are of traceability from the material input to finished products delivery, Inspection and testing are implement during the whole production steps. and the Comprehensive test will be taken before the delivery;
