Product Details:
|
| Product Name: | Rechargeable Battery Pack | Service: | OEM ODM Accepted |
|---|---|---|---|
| Battery Size: | 40*49*86 (mm) Or Customized | Battery Model: | 104884 5000mAh |
| Price: | Best And Factory Price | Lead Time: | 15 Day For Samples, 30days For Bulk Order |
| Highlight: | lion polymer battery,lithium polymer car battery |
||
Long Cycle Life Lithium Polymer Battery | 4s Lipo Battery 5000mah 14.8 V Portable Power for Backup Power Supply | China Manufacturer MSDS
Lipo Battery Specification:
| Product Name | 5000mAh 14.8V lipo battery Pack | |
| Battery Type | Rechargeable Lithium Polymer Battery | |
| Power Wh: | 74 Wh | |
| Assembly Composed Type | 4 single cell(4S1P) | |
| Nominal Capacity | 5000 mAh | @ 0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Charge Voltage | 16.8±0.12 V | |
| Cut-off Voltage | 12.0 V | |
| Standard discharge Current | 1000 mA | @ 0.2C charge |
| Max. discharge current | 5000 mA | @ 1 C charge |
| Standard charge Current | 1000 mA | @ 0.2C discharge |
| Max. charge Current | 5000 mA | @ 1C discharge |
| Resistance | ＜50 mΩ | |
| Weight (Approx.) | 1810 g | |
| Cycle Life | Over 480 times | |
| Dimensions(T.W.L.) | 40*49*86 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~45℃ | Less than one month |
| 0~30℃ | More than one month | |

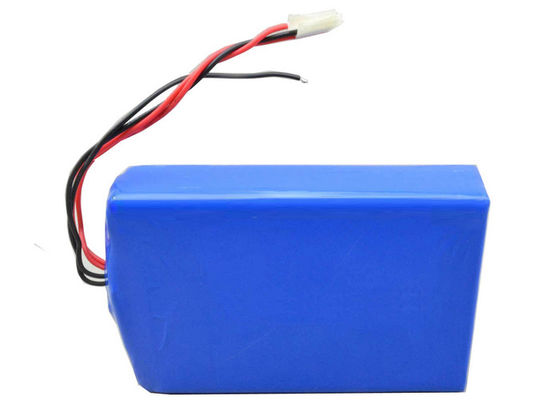

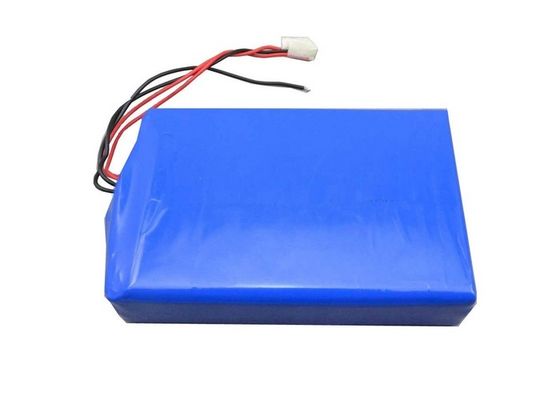

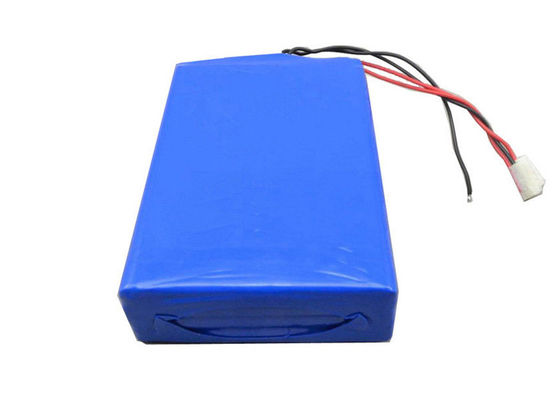

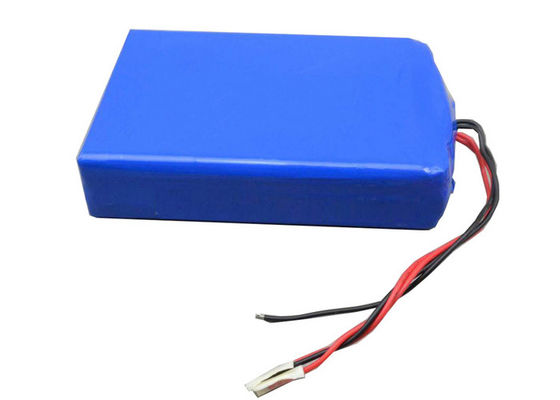

2. Its neat rectangular shape indicates it is assembled from multiple cells (either 18650 cylindrical or soft-pack polymer cells) via series-parallel connections, with customizable dimensions to fit different device installation spaces.
Unlike standard 2-wire packs, this one features three wires:
The pack comes pre-fitted with a white connector (most likely a JST-style plug), eliminating the need for user soldering. It can be directly plugged into matching device headers, ideal for standardized OEM/ODM projects.
Battery Advantage:
1.Good quality with competitive price.
2.High transfer efficiency low resistance and energy saving.
3.steady perfgormance,long cycle life,eco-friendly,light weight
4.built-in PCM protection system,with advanced imported chip
5.multiple-series connection and modularized smart design
6.OEM/ODM services is available
Applications:
1. Emergency power supply, LED light & flashlight
2. Home appliance products
3. Consumer applications, communicate & telephone equipment
4. Outdoor sports products
5. Electronical tools & electric transportation vehicles
6. Solar lawm, remote control
7. Medical device
8. Backup power supply
9. Electrical and hobby
10. UPS, GPS
Why choose us?
1.Professional sales team offer good service before and after sale.
2.Quick response: your any inquiry would be responsed within 24hours.
3.Short Lead time: 10-15 days for cells; 20-25 days for battery pack.
4.High quality battery: A grade cells, 1 year warranty, 100% real capacity.
5.Fast delivery: ship via Door to Door(courier), AIR, SEA, according to your request.
6.Customized Service: OEM/ODM is acceptable, Small order are welcome.
We offer full custom solutions for lithium battery packs, power connectors, wiring harnesses, and more, including custom voltage, capacity, dimensions, connectors, and packaging to perfectly match your project requirements. Our team will reply to your inquiry within 24 hours with professional technical support, quotation, and free sample consultation.If you want to learn more details,please contact us email:Olinda@unitechelectronic.com
