UN38.3 Certified | Long Cycle Life Lithium Polymer Battery | Custom 14.8V 4S1P 1500mAh ,12 Months Warranty Li Polymer Battery Pack for Medical Device | Made in China

UN38.3 Certified | Long Cycle Life Lithium Polymer Battery | Custom 14.8V 4S1P 1500mAh ,12 Months Warranty Li Polymer Battery Pack for Medical Device | Made in China

Lipo Battery Specification

Core Features

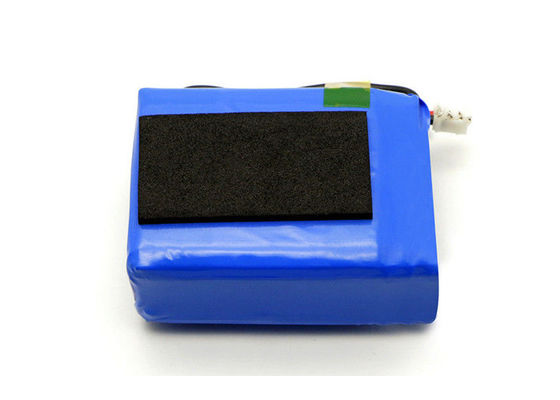

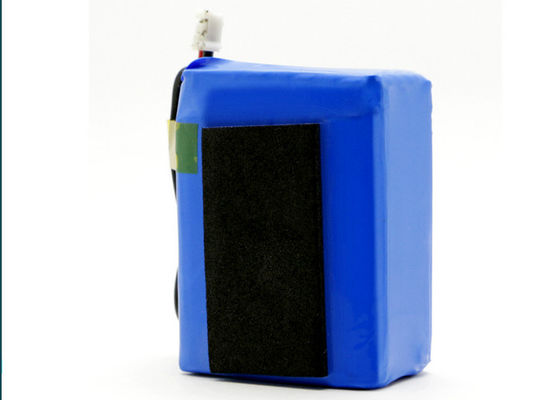

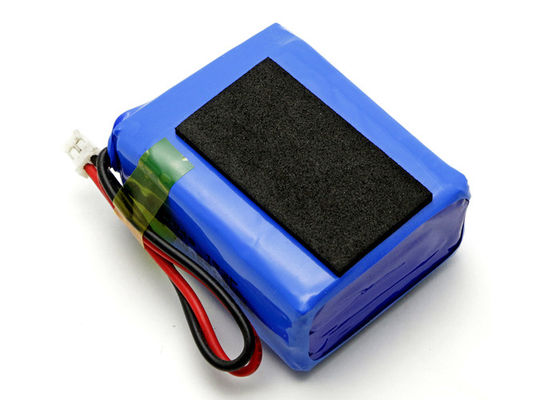

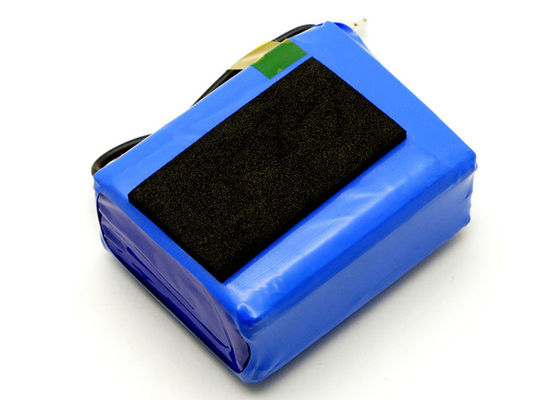

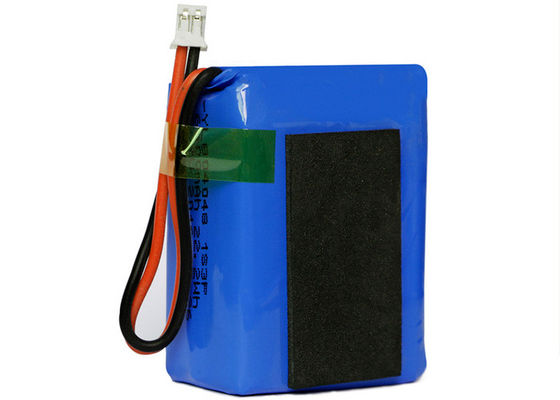

• Appearance & Protection Details

1. The pack is enclosed in a blue PVC heat-shrink sleeve, providing standard insulation, moisture resistance, and scratch protection.
2. A black foam pad on the side serves as shock-absorbing and anti-slip padding, preventing the battery from shifting or wearing inside the device. A green tape secures the lead wires to avoid strain damage.
3. Its compact rectangular shape indicates it is assembled from multiple soft-pack cells in series-parallel configuration, with customizable dimensions to fit the installation space of small instruments and portable devices.

• Connector & Wiring Design

1. It features two wires (orange/red for positive, black for negative) terminated with a pre-installed white 2-pin connector (typically a JST/PH style header), enabling plug-and-play integration without user soldering, ideal for standardized OEM device interfaces.
2. This 2-wire design is a basic power solution for low-power devices, using the same connector for both charging and discharging for convenience.

• Functionality & Applications

1. Key Advantages: With soft-pack cells and an integrated protection circuit, the pack is compact and lightweight, with basic protections against overcharging, over-discharging, and short circuits for high safety.
2. Common Applications: Portable medical devices, handheld instruments, smart security equipment, small consumer electronics, and IoT devices.

Warranty

We will be responsible for replacing the cell against defects or poor workmanship for 12 months from the date of shipping. Any other problem caused by malfunction of the equipment or mix-use of the cell is not under this warranty.


Additional Notes

1. Provide both single cells and battery packs
2.100% inspection before delivery
3. Inspects inner resistance, discharge platform and self-discharge
4. Capacity ranges from 120mAh to 200Ah
5. Manufacturer of 18650 lithium ion battery, lithium polymer battery etc.
6. Established quality control systems
7. Customized packs, tags, labels, plugs, connectors, over current protection protection are available


Why choose us?

*High quality battery: A grade cells, 1 year warranty, 100% real capacity.

* Professional sales team offer good service before and after sale.
*Quick response: your any inquiry would be responsed within 24hours.
*Short Lead time: 10-15 days for cells; 20-25 days for battery pack.
*Fast delivery: ship via Door to Door(courier), AIR, SEA, according to your request.
*Customized Service: OEM/ODM is acceptable, Small order are welcome.

We offer full custom solutions for lithium battery packs, power connectors, wiring harnesses, and more, including custom voltage, capacity, dimensions, connectors, and packaging to perfectly match your project requirements. Our team will reply to your inquiry within 24 hours with professional technical support, quotation, and free sample consultation.If you want to learn more details,please contact us email:Olinda@unitechelectronic.com
