Product Details:
|
| Product Name: | Poartable Lithium Polymer Battery | Battery Size: | 48*62*70 (mm) |
|---|---|---|---|
| Warranty: | 1 Year | Configuration: | 4S1P 14.8V |
| Battery Capacity: | Can Be Customized | Cycle Life: | 500 Cycles |
| Highlight: | lion polymer battery,rechargeable lithium polymer battery |
||

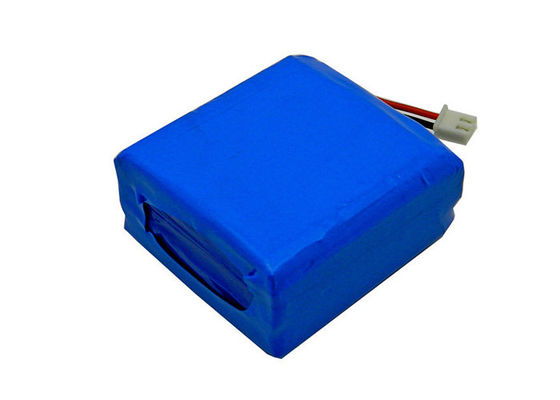

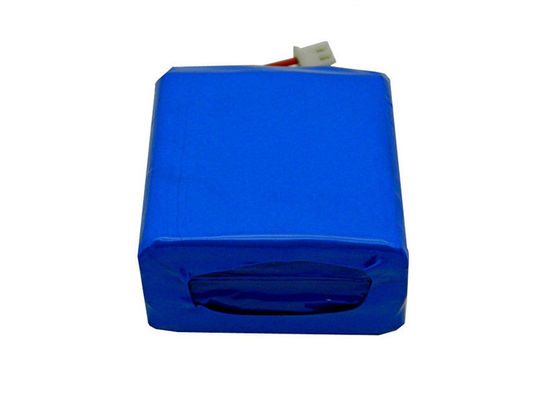

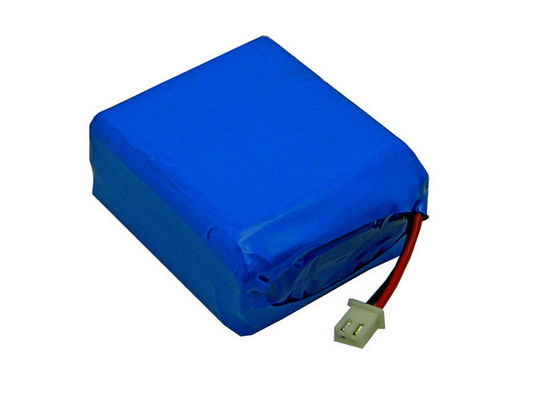

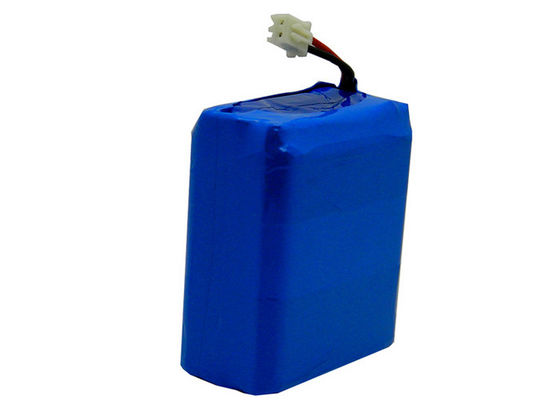

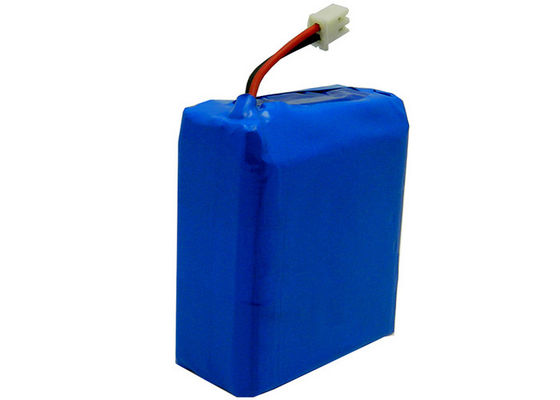

CE Certified | Rechargeable Lithium Polymer Battery | 14.8 V 4S 6000mah 500 Cycles Life with Advanced Imported Chip for Industrial Electronics| Customizable China Factory Direct
Product Specification:
| Product Name | 6000mAh 14.8V lipo battery Pack Supplier | |
| Battery Type | Lithium Polymer Battery Rechargeable | |
| Power Wh: | 88.8 Wh | |
| Assembly Composed Type | 4 single cell(4S1P) | |
| Nominal Capacity | 6000 mAh | @ 0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Charge Voltage | 16.8±0.12 V | |
| Cut-off Voltage | 12.0 V | |
| Standard discharge Current | 1200 mA | @ 0.2C charge |
| Max. discharge current | 6000 mA | @ 1 C charge |
| Standard charge Current | 1200 mA | @ 0.2C discharge |
| Max. charge Current | 6000 mA | @ 1C discharge |
| Resistance | ＜42 mΩ | |
| Weight (Approx.) | 440 g | |
| Cycle Life | Over 500 times | |
| Dimensions(T.W.L.) | 48*62*70 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~45℃ | Less than one month |
| 0~30℃ | More than one month | |
✅ Ready-to-Use Design: Fully assembled and tested, eliminating the need for in-house battery pack assembly or soldering.
✅ High Customization: Tailored voltage, capacity, form factor, and connector type to perfectly match your product’s design.
✅ Built-in Safety Protection: Integrated BMS ensures safe and reliable operation by preventing common electrical faults.
✅ Space-Efficient Packaging: Compact PVC shrink wrap protects cells while minimizing the overall footprint.
✅ Plug-and-Play Installation: Pre-terminated connector enables quick, error-free connection to your device.
✅ Long Cycle Life: Uses high-quality cells to ensure consistent performance over hundreds of charge cycles.
Battery Advantage:
1. Long cycle lifespan: more than 500 repeated charge/discharge cycles
2. Fast charge capacity: can be fully charged in 2 to 3 hours with a rated voltage of 4.2 per cell
3.Steady perfgormance,long cycle life,eco-friendly,light weight
4.Built-in PCM protection system,with advanced imported chip
5.multiple-series connection and modularized smart design
Battery application:
Telecom.Electric utilities.Control equipment.Security systems.Medical equipment.UPS systems.Railroad utilities.Photovoltaic system .Renewable energy system,Solar,Wind power
Trading details:
1) Packing: industrial packing (can be as customer's requirements)
2) Delivery lead time: usually 15 days for samples, 30 days for bulk order after payment
3) Payment term: T/T, Western Union
