Product Details:
|
| Product Name: | Lithium Polymer Battery | Battery Size: | 21*68*102 (mm) |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 300g |
| Power Wh:: | 60.68 WH | Cycle Life: | 500 Cycles |
| Highlight: | lion polymer battery,rechargeable lithium polymer battery |
||

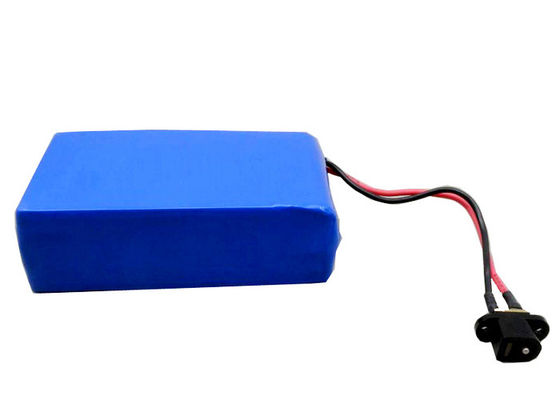

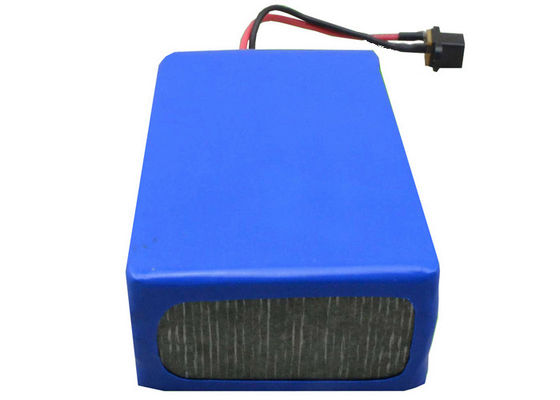

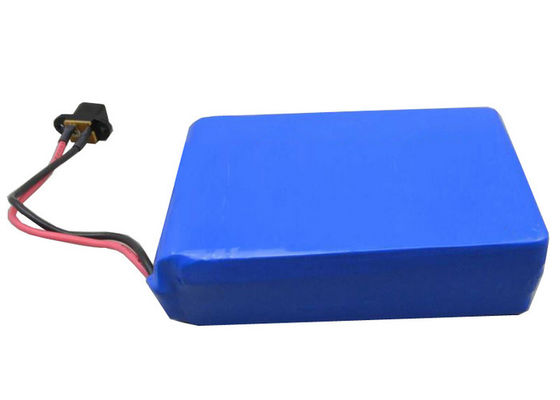

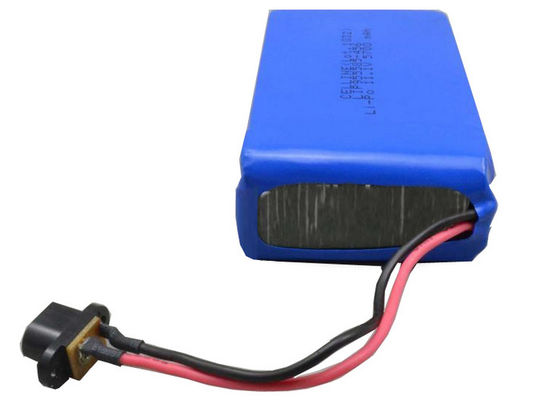

High Capacity Li Po Battery Pack | Samsung Custom 14.8 V 4100mAh 4 Cell Lithium Polymer Battery for Medical Devices | China OEM Manufacturer
Lipo Battery Specification:
| Product Name | 4100mAh 14.8V lipo battery Pack Manufacturer | |
| Battery Type | High Voltage Lithium Polymer Battery | |
| Power Wh: | 60.68 Wh | |
| Assembly Composed Type | 4 single cell(4S1P) | |
| Nominal Capacity | 4100 mAh | @ 0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Charge Voltage | 16.8±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard discharge Current | 820 mA | @ 0.2C charge |
| Max. discharge current | 4100 mA | @ 1 C charge |
| Standard charge Current | 820 mA | @ 0.2C discharge |
| Max. charge Current | 4100 mA | @ 1C discharge |
| Resistance | ＜55 mΩ | |
| Weight (Approx.) | 300 g | |
| Cycle Life | Over 500 times | |
| Dimensions(T.W.L.) | 21*68*102 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | -10~45℃ | Less than one month |
| 0~30℃ | More than one month | |
✅ High Energy Density: Li-Po cells offer a compact, lightweight form factor that maximizes space efficiency.
✅ Stable 11.1V Output: 3-series configuration provides consistent power for devices requiring this voltage range.
✅ Secure Panel-Mount Connector: The DC jack with mounting holes prevents accidental disconnection and ensures a reliable power feed.
✅ Built-in Safety Protection: Integrated BMS protects the pack and device from common electrical faults.
✅ Plug-and-Play Operation: Pre-terminated connector eliminates the need for in-house soldering or assembly.
✅ Customizable Design: Voltage, capacity, form factor, and connector type can all be tailored to your product requirements.
Guarantee:
-Long guarantee time: 12 months from shipping date
-Defective lipo batteries caused by production can be replacement, and the new one will be sent with second shipment.
Battery Advantage:
1.Voltage, capacity and IR for each cell in one battery pack are strictly matched
2.Customizes shapes, capacity and voltage are accepted
3.High-energy density, long cycle lifespan and high-security.
4.Flexible size, individual cells and can be assembled in parallel or series
Battery Application:
Electric cars, storage batteries, telecom power and electric motorcycles, RV power system, Mobile power system, Emergency power station, Home standby power station.
Portable DVD, portable television,
Portable Devices: GPS, PDA, E-book, PMP, PSP, portable medical device etc.
Illuminate Devices: Miner lamp, searchlight.
Electric bike, electric scooter, electric motor and more
