Product details

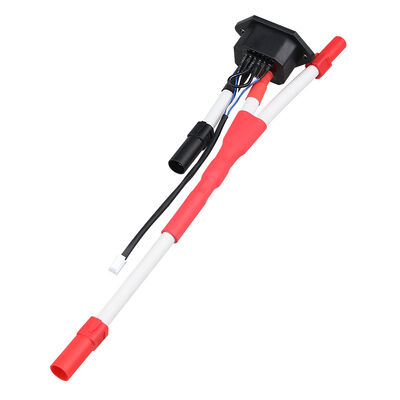

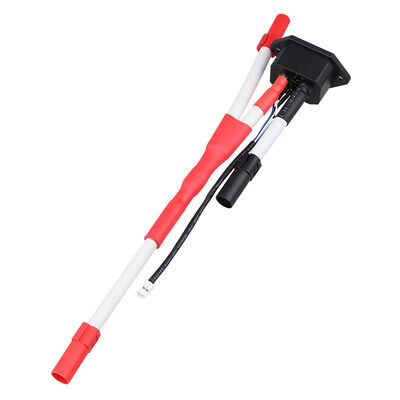

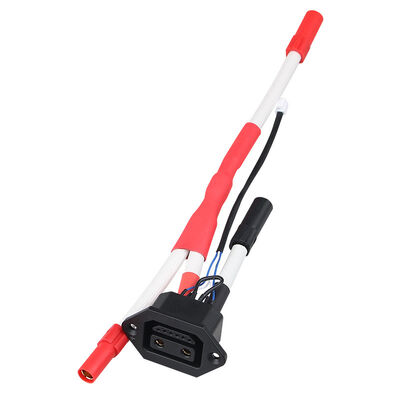

Product Introduction

Panel-Mount Socket Housing (Black End)
A rugged, installable plastic base with mounting holes, designed to be embedded directly into the vehicle frame or battery enclosure for a clean, fixed connection point.
Houses both high-current power terminals and signal pins, consolidating power and data connections into a single unit.

High-Current Main Power Cables
Heavy-gauge red/black power wires protected by heat-resistant fiberglass braided sleeves and heat-shrink tubing, rated for continuous high current.
Terminated with large, insulated power connectors, designed to handle the main charge/discharge load of the battery pack.

Auxiliary Signal Wires
Includes low-voltage signal leads (with a white connector) and auxiliary plugs, dedicated to connecting the BMS for functions like temperature sensing, communication (CAN/RS485), and status monitoring.

Key Features

Integrated Design: Combines power, signal, and sensing lines into one harness, simplifying installation and reducing wiring complexity and potential failure points.

High Durability: The combination of fiberglass sleeves and heat-shrink tubing provides excellent protection against heat, abrasion, and short circuits in demanding environments.

Dedicated Functionality: Purpose-built for connecting the battery management system (BMS) to the vehicle controller and charger, ensuring stable communication and power delivery.

Common Uses: Electric scooters, e-bikes, electric motorcycles, custom lithium battery packs, and portable energy storage systems.
