Custom Length Wire Harness | SMA Right-Angle Male RG316 Flexible RF Coaxial Cable Assembly for UAV | From Prototype to Mass Production

Custom Length Wire Harness | SMA Right-Angle Male RG316 Flexible RF Coaxial Cable Assembly for UAV | From Prototype to Mass Production

Core Technical Specifications

Appearance & Core Structure

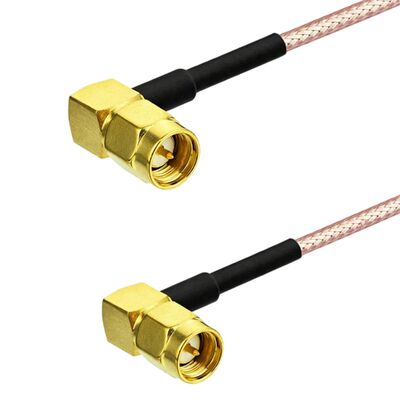

• Connector Specs: Both ends feature SMA male connectors (male pin, female thread) with a 90° right-angle design, perfectly fitting space-limited device installations and avoiding signal loss or connector damage caused by sharp cable bends. The gold-plated brass connectors offer excellent conductivity, corrosion resistance, and oxidation resistance for consistent long-term performance.

• Cable Specs: Uses RG316 flexible RF coaxial cable with a tinned copper braid shield and transparent FEP insulation layer. It provides superior EMI shielding, effectively blocking external electromagnetic interference, while remaining highly flexible for easy routing and installation.

• Strain Relief: Black heat-shrink tubing reinforces the connection between the connector and cable, enhancing tensile strength, preventing cable breakage, and adding insulation protection for extended service life.

Highlights

• Gold-Plated SMA Right-Angle Design: 90° elbow fits tight installation spaces perfectly, with gold-plated connectors for oxidation resistance, excellent conductivity, and consistent long-term signal performance.

• High-Performance RG316 Cable: Flexible, high-shielding coaxial cable with low signal loss, strong EMI resistance, and wide temperature range for use in harsh environments.

• Industrial-Grade Durability: Reinforced connector-cable junction for enhanced tensile strength and bend resistance, ensuring long service life even with frequent use.

• High Customization Flexibility: Fully customizable cable length and connector type for plug-and-play compatibility with nearly all RF equipment.

We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

Unitech has been transforming our customers’ concepts and drawings into deliverable solutions, cable assemblies, and wire harnesses so that can meets or exceeds customer requirements by providing the best value in quality, cost, delivery, and customer service

If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample

and drawing to us.We'll get back to you right away,please contact us email:Olinda@unitechelectronic.com

Important Notes

• Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

• Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

• Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

• Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
