Precision Terminal Wire Assembly | Custom 4P 1.25mm JST Terminal Wire, Red Black Twisted Signal Cable for Sensor, Drone, Motor | RoHS Compliant Made in China

Precision Terminal Wire Assembly | Custom 4P 1.25mm JST Terminal Wire, Red Black Twisted Signal Cable for Sensor, Drone, Motor | RoHS Compliant Made in China​

Core Technical Specifications

Highlights

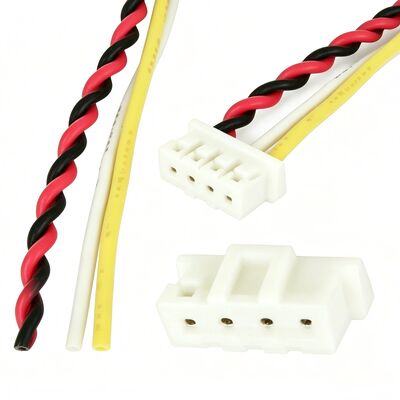

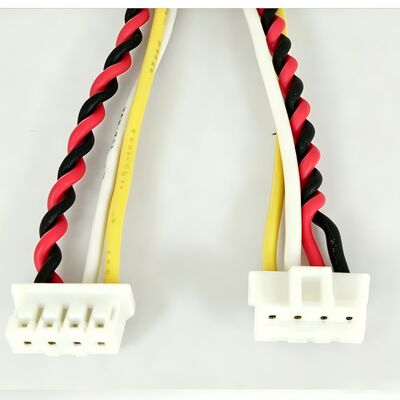

• Wire Construction & Anti-Interference Design

Core Configuration: The red and black conductors use a tight twisted pair construction, while the yellow and white conductors run in a parallel straight configuration.

Design Logic:
Red/Black Twisted Pair: Leverages the electromagnetic cancellation principle of twisted wires to drastically reduce external electromagnetic interference (EMI) and crosstalk between wires, ensuring stable signal transmission — ideal for high-interference environments like motors and sensors.

Yellow/White Parallel Pair: Dedicated to stable power transmission with lower line loss and more reliable power delivery.

Wire Specifications: The printed markings on the wire confirm it is a UL-certified electronic wire (most commonly UL1571 / UL1007), with a 24-30AWG tinned copper conductor and flame-retardant PVC insulation, fully compliant with RoHS environmental standards.

•  Core Connector (Housing) Specifications

Pitch Standard: A standard 1.25mm ultra-fine pitch that saves over 40% of installation space compared to conventional PH2.0 / XH2.54 terminal wires, perfectly suited for miniaturized and compact devices.

Material & Construction:
Housing Body: Made of high-temperature resistant PA66 nylon, which resists aging, deformation, and brittleness even after long-term use.
Terminal Contacts: Brass with tin plating for excellent conductivity and oxidation resistance, with a minimum mating lifespan of over 5000 insertions.

Anti-Disconnection Design: Dual-side elastic locking clips that firmly lock the connector to the board-mounted header, providing excellent vibration resistance and preventing accidental disconnection that could cause contact failure during device operation.


We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

Unitech has been transforming our customers’ concepts and drawings into deliverable solutions, cable assemblies, and wire harnesses so that can meets or exceeds customer requirements by providing the best value in quality, cost, delivery, and customer service

If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample

and drawing to us.We'll get back to you right away,please contact us email:Olinda@unitechelectronic.com

Important Notes

• Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

• Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

• Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

• Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
