Product Details:
|
| Product Name: | IPEX/U.FL To SMA Flange RF Cable,RG1.13 Low Loss | Professional In: | Wire Connector Harness |
|---|---|---|---|
| Colour: | Red / Black Can Be Customized | Category: | Male / Female Wire Harness |
| Key Feature: | Custom Wiring Harness | Application: | WiFi Router, Bluetooth Module, Zigbee, IoT Device, Drone Antenna Certification RoHS Compliant |

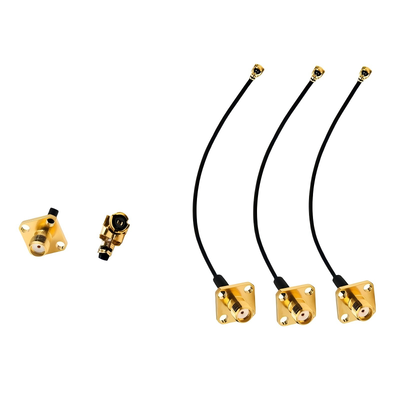

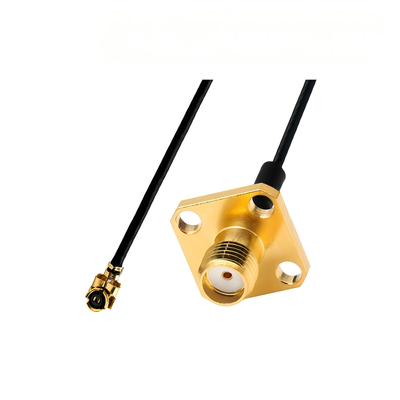

Precision Terminal Wire Assembly | Custom RG1.13 RF Coaxial Cable, IPEX/U.FL Female to SMA Female 4-Hole Flange Connector for Drone Antenna Wiring Harness | ROHS Compliant Made in China
| Product Name | RG1.13 IPEX/U.FL to SMA Flange RF Coaxial Cable Assembly |
| Connector 1 | IPEX/U.FL Female (IPEX 1st Gen) |

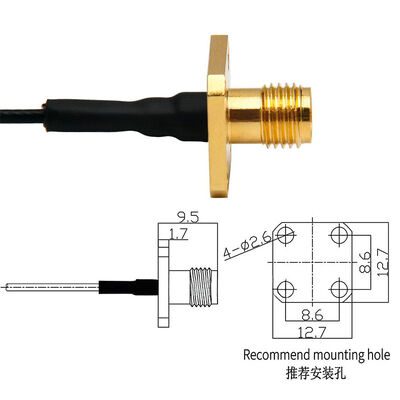

| Connector 2 | SMA Female with 4-Hole Flange (Panel Mount) |
| Frequency Range | DC ~ 6GHz |
| Cable Length | 25mm / 35mm / 50mm (Customizable) |
| Application | WiFi Router, Bluetooth Module, Zigbee, IoT Device, Drone Antenna |
|
Key Features
|
Low Signal Loss, High Temperature Resistant, Corrosion Resistant
|
| Impedance |
50 Ohm
|
| Connector Material | Gold-Plated Brass |
| Engineering service | OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection |
| Samples |
1.Samples confirmed first before mass production 2.Samples for free |
| MOQ | Small Order Can Be Accepted |
| Package | Inner:plastic bag outer:standard export cartons or custom package |
Wire Harness And Cable Features:
✅ Standard RF Connectors: Features an IPEX/U.FL female connector for PCB modules and an SMA female with 4-hole flange for panel mounting, ideal for external antenna installation.
✅ Low-Loss RG1.13 Cable: Made of high-quality RG1.13 coaxial cable, providing low signal attenuation up to 6GHz, perfect for WiFi, Bluetooth, and other wireless signals.
✅ Durable Gold-Plated Connectors: Gold-plated brass contacts ensure excellent conductivity and corrosion resistance, maintaining stable signal transmission over time.
✅ Space-Saving Design: Ultra-thin RG1.13 cable allows flexible routing in compact devices like routers, cameras, drones, and IoT modules.
✅ Versatile Applications: Suitable for extending antenna connections on WiFi adapters, Bluetooth modules, Zigbee devices, and other wireless communication equipment.
We can produce series of cable wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
We are Direct Cable Harness Factory
Electrical Harness Manufacturers For Custom Battery Pack
Electrical Wire & Cable Manufacturers
If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. Olinda@unitechelectronic.com
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
