Precision Terminal Wire Assembly | Custom Anderson Connector with an Inline Fuse Holder Power Cable Harness for Battery Energy Storage | ROHS Compliant Made in China

Precision Terminal Wire Assembly | Custom Anderson Connector with an Inline Fuse Holder Power Cable Harness for Battery Energy Storage | ROHS Compliant Made in China

Product details

Highlights at a glance

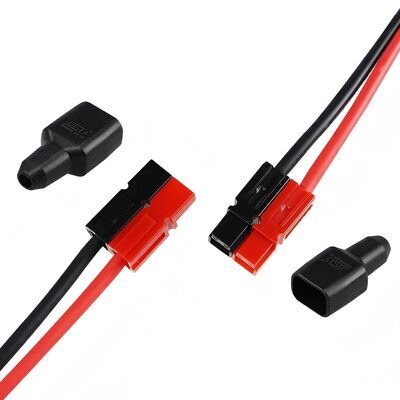

Anderson-Style Quick-Connect Plug

Design & Features: Red and black color-coded male/female mating connectors with the classic Anderson 50A self-locking design. It enables tool-free, effortless insertion/removal, and the locked connection prevents accidental disconnection, ensuring stable high-current transmission.
Compatibility: A universal industry standard high-current DC interface, widely compatible with 18650 battery packs, LiFePO4 batteries, portable power stations, solar panels, inverters, and other DC power systems for quick power connection and circuit interruption without screw terminals.
Electrical Rating: Rated for up to 50A continuous current, perfectly suited for 12V/24V low-voltage DC systems to support high-power charging and discharging.

Inline Waterproof Fuse Holder

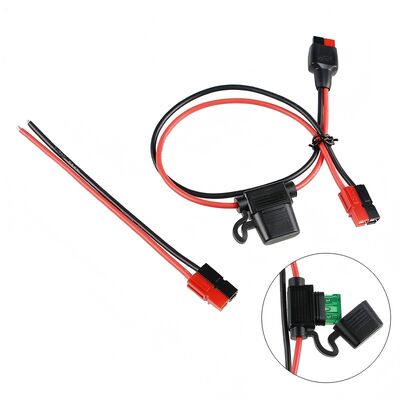

Design & Placement: A black inline waterproof fuse holder is integrated into the middle of the cable, with a flip-top cover. The zoomed-in inset in the bottom right clearly shows its internal cavity for standard blade fuses (the green component in the inset is a sample fuse).
Core Function: Provides critical overcurrent and short-circuit protection for the circuit. In the event of a short circuit or overload, the fuse will blow instantly to protect connected batteries and electrical equipment from damage by excessive current.
Practical Design: Built with a mounting tab to secure the harness to equipment or vehicle bodies, preventing strain and damage from cable movement and vibration.

Cable & Termination Options

Cable Specifications: Red and black parallel high-temperature pure copper power wires, typically available in 14AWG high-current ratings to minimize voltage drop and heat generation during high-power operation.

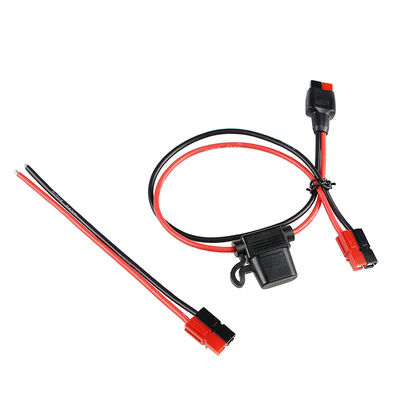

Termination Styles: The image displays two common configurations:
Open-Wire End Harness: One end features the Anderson plug with inline fuse holder, the other end has pre-stripped bare wires for direct soldering or crimping to battery terminals or equipment.
Male/Female Extension Kit: Includes both male and female Anderson connectors for paired use between fixed equipment and extension cables, adapting to different installation and wiring needs.

Distributor Strength : Wide Range of Products & BOM Service Available.

Product Quality : Over 90% of products are certified by international quality standards (e.g UL, RoHS).

Technical Support : Our technical team has over 10 years of industry experience, providing over 1,000 hours of technical support annually.

Supply Chain Management : 99% of orders are delivered on time, with inventory covering over 5,000 types of components.

Market Coverage : Serving over 30 countries and regions, with over 1500 industry clients.

Customer Service : Providing 24/7 customer support with a customer satisfaction rate of 98%.

Innovation Capability : Introducing at least 100 new products annually, staying updated with the latest technology

Please contact us if you need any help on wire harness, all can be made as your requirement.

Please contact us for price by email:Olinda@unitechelectronic.com, we will reply in 8 hrs.
