Product Details:
|
| Product Name: | 4 Conductor Tinned Copper Twisted Wire With Stripped Ends | Professional In: | Wire Connector Harness |
|---|---|---|---|
| Colour: | Red / Black / White / Brown Can Be Customized | Working Temperature: | -20℃ To +80℃ |
| Key Feature: | Custom Wiring Harness | Application: | RC Hobby, Drone, Motor, ESC |
| Current Rating: | 3A (22AWG) / 2A (24AWG) / 1.5A (26AWG) Per Conductor | Voltage Rating: | 300V AC/DC |

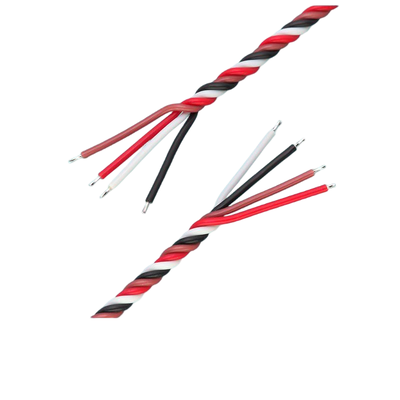

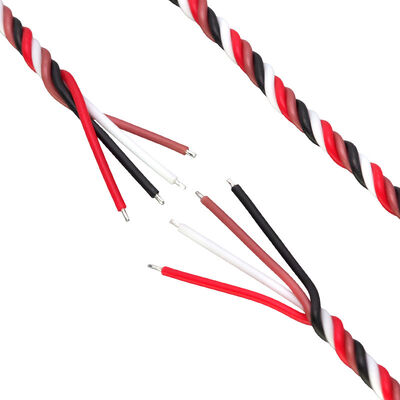

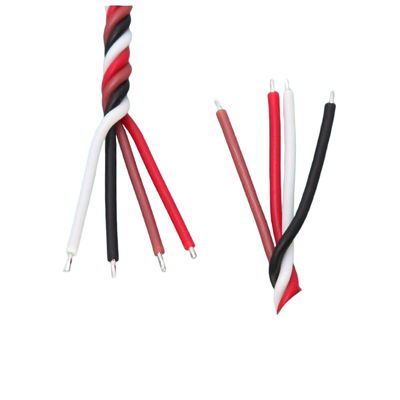

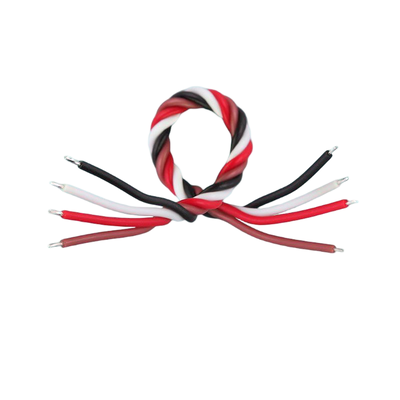

Custom Wiring Harness | 4-Conductor Twisted Pair Signal Wire for Drones & FPV Quadcopter | UL Certified Factory
| Name | 4 Conductor Tinned Copper Twisted Wire with Stripped Ends |
| Conductor Gauge | 22AWG / 24AWG / 26AWG (customizable 20AWG / 28AWG) |
| Conductor Material | Tinned Copper |
| Insulation Material | PVC |
| Cable Length | Custom lengths from 100mm to 1000mm |
| Twisting Pitch | 10~20mm (optimized for maximum EMI suppression, customizable) |
| Color Coding | Red / Black / White / Brown (custom color combinations available) |
| Application | FPV Drone, Quadcopter, Flight Controller (FC) to 4-in-1 ESC ConnectionCertificationRoHS Compliant |
|
Rated Rating
|
300V AC/DC |
|
Key Features
|
Precision twisting design effectively eliminates electromagnetic interference
|
| Engineering service | OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection |
| Samples |
1.Samples confirmed first before mass production 2.Samples for free |
| MOQ | Small Order Can Be Accepted |
| Package | Inner:plastic bag outer:standard export cartons or custom package |
Wire Harness And Cable Features:
We can produce series of cable wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
We are Direct Cable Harness Factory
Electrical Harness Manufacturers For Custom Battery Pack
Electrical Wire & Cable Manufacturers
If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
