Product Details:
|
| Product Name: | 2.54mm 2Pin Twisted Pair Cable, Red Straight Dupont To Angled Dupont Connector Wire | Professional In: | Wire Connector Harness |
|---|---|---|---|
| Colour: | Multi-color Coded (black/orange/grey/red); Custom Colors Available | Working Temperature: | -40℃ ~ +80℃ |
| Key Feature: | Custom Wiring Harness | Application: | Meteorological Drones, High-altitude UAVs, Photovoltaic Power Systems, RC Models, Industrial Equipment |
| Voltage Rating: | 300V AC/DC | Rated Current: | 5A–10A |

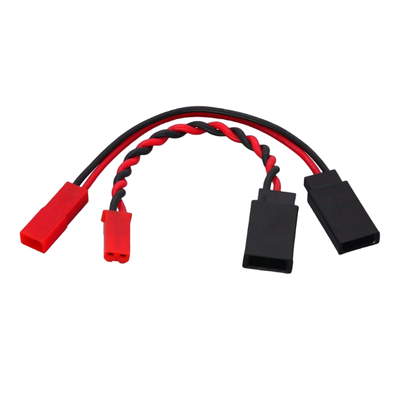

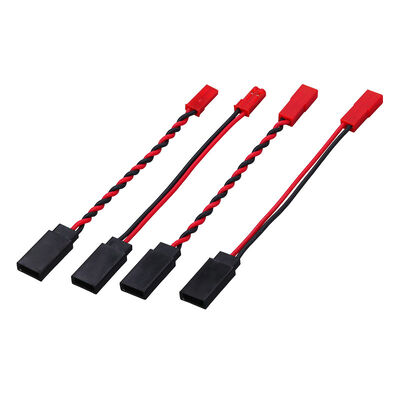

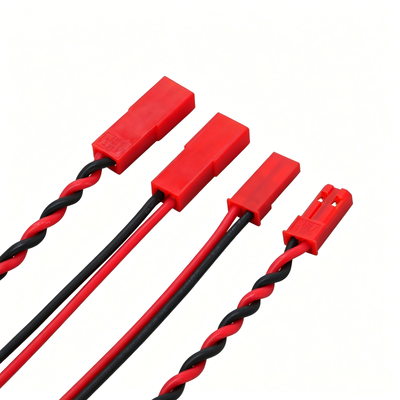

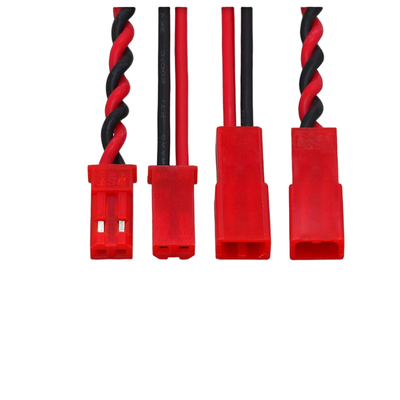

China Custom Cable Assembly Manufacturer | Custom 2.54mm 2Pin Twisted Pair Cable, Red Straight Dupont to Angled Dupont Connector Wire Harness for Meteorological Drone
| Name | 2.54mm 2Pin Twisted Pair Cable, Red Straight Dupont to Angled Dupont Connector Wire |
| Conductor Gauge | 24AWG / 26AWG / 28AWG, customizable 22–30AWG as required |
| Connector 1 | Straight red Dupont plug, UL94-V0 flame retardant PA66 nylon housing, tin-plated phosphor bronze contact terminals, available in male or female type |

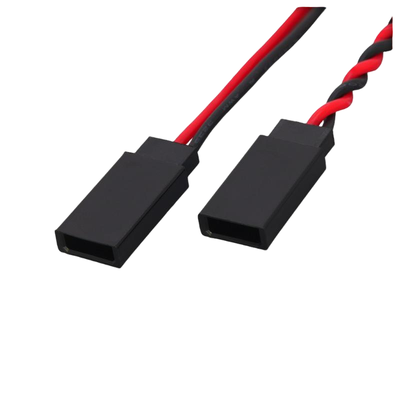

| Connector 2 | Offset angled black Dupont female header, side outlet design, saves internal drone frame space, avoids wire sharp bending damage |
| Insulation Material | PVC |
| Cable Length | 5cm / 10cm / 15cm / 20cm / 30cm; custom lengths from 3cm to 100cm are acceptable |
| Color | Standard red-black dual color; custom wire insulation colors and plug shell colors available |
| Application | Meteorological drones, high-altitude UAVs, photovoltaic power systems, RC models, industrial equipment |
|
Rated Rating
|
300V AC/DC |
| Certifications | RoHS , REACH compliant |
| Customization Options | Custom wire gauge, length, color, pin count, connector gender, silicone insulation upgrade |
| Engineering service | OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection |
| Samples |
1.Samples confirmed first before mass production 2.Samples for free |
| MOQ | Small Order Can Be Accepted |
| Package | Inner:plastic bag outer:standard export cartons or custom package |
Wire Harness And Cable Features:
✅ Twisted pair red-black wire design greatly reduces EMI interference from drone ESC, stable signal for GPS and flight controller
✅ Space-saving angled black Dupont header, ideal for compact mini drone frame internal wiring
✅ Standard 2.54mm pitch dual Dupont connectors, widely compatible with all mainstream UAV flight control boards
✅ Anti-drop crimped terminals, durable under high vibration of high-altitude meteorological drones
✅ Custom wire length, gauge and plug gender available for different UAV wiring layouts
Main Application Scenarios:
Signal and auxiliary power connection between flight controller and atmospheric sensor modules, high-precision GPS positioning modules, wind speed detection sensors, navigation warning lights. The anti-interference twisted design ensures accurate meteorological data transmission under complex electromagnetic environments at high altitude.
Extension wiring for flight control peripherals: buzzer alarms, status indicator LEDs, battery voltage alarm modules, camera auxiliary power supply. Effectively suppress ESC electromagnetic interference to stabilize image transmission signals.
Remote control cars, boats and aircraft: servo signal extension lines, decorative light power wiring, auxiliary sensor connection harnesses.
Single-chip microcomputer control boards, miniature detection sensors, low-voltage indicator modules, laboratory prototype wiring.
We can produce series of cable wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
We are Direct Cable Harness Factory
Electrical Harness Manufacturers For Custom Battery Pack
Electrical Wire & Cable Manufacturers
If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
