Product Details:
|
| Product Name: | 1.25mm Pitch 6Pin Connector Cable Assembly | Professional In: | Wire Connector Harness |
|---|---|---|---|
| Colour: | Multiple Colors Can Be Customized | Working Temperature: | -20℃ To +80℃ |
| Key Feature: | Custom Wiring Harness | Application: | Connect Flight Controllers, ESCs, Receivers And GPS Modules |
| Voltage Rating: | 300V AC/DC |

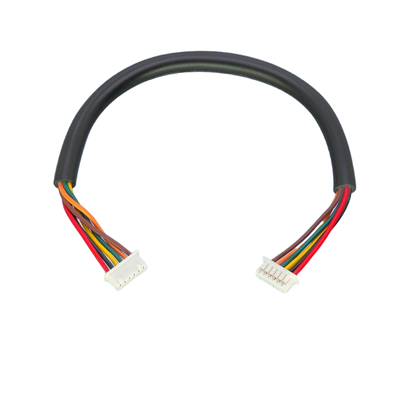

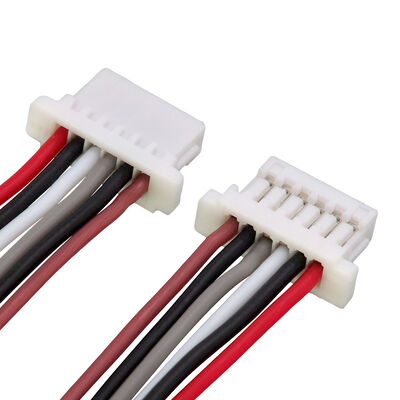

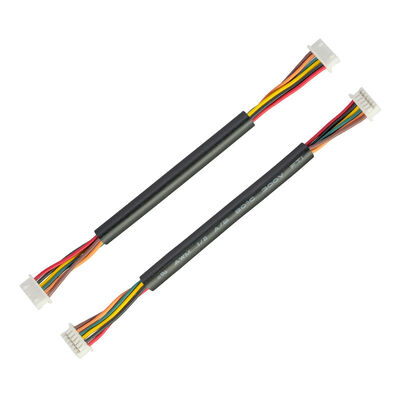

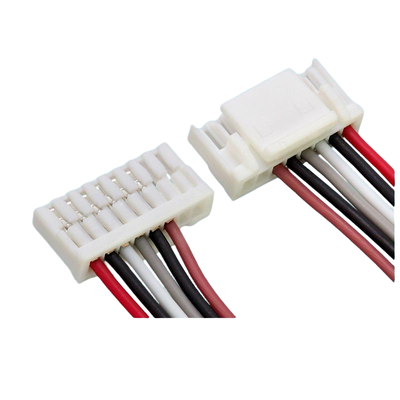

Precision Terminal Wire Assembly | PH1.25 6Pin Multi-Color Coded Extension Cable Assembly for Mini Drone | Custom Wiring Harness | RoHS Compliant Made in China
| Name | 1.25mm Pitch 6Pin Connector Cable Assembly |
| Conductor Gauge | 26AWG / 28AWG (customizable) |
| Conductor Material | Tinned Copper |
| Contact Material | Phosphor Bronze with Tin Plating |
| Insulation Material | PVC |
| Cable Length | 10cm / 15cm / 20cm / 30cm (custom lengths available) |
| Reinforcement | Optional Black Heat Shrink Tube Protection |
| Application | Drone flight controllers, FPV peripherals, RC models, small electronics, sensor modules |
|
Rated Rating
|
300V AC/DC |
| Certifications | RoHS , REACH compliant |
| Features | Built-in Latching Lock , Multi-color Coded Wires , Mini Micro-Pitch Structure |
| Engineering service | OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection |
| Samples |
1.Samples confirmed first before mass production 2.Samples for free |
| MOQ | Small Order Can Be Accepted |
| Package | Inner:plastic bag outer:standard export cartons or custom package |
Wire Harness And Cable Features:
✅ Ultra-Compact Micro-Pitch Design
The 1.25mm pitch connector minimizes space usage, ideal for tight drone frames and small electronic devices where every millimeter counts.
✅ Vibration-Resistant Latching Lock
The built-in positive lock prevents accidental disconnection caused by high-frequency flight vibration, ensuring continuous signal stability during drone operation.
✅ Multi-Color Coded Wiring
Six distinct color-coded wires simplify channel identification, reducing wiring errors and streamlining drone assembly and troubleshooting.
✅ Flexible & Durable Construction
Soft PVC insulation supports free bending in cramped spaces without cracking, while factory-crimped terminals provide long-term reliability.
✅ Stable Multi-Channel Signal Transmission
High-purity tinned copper core ensures low resistance and anti-oxidation, maintaining clear signal transmission even under minor electromagnetic interference.
We can produce series of cable wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
We are Direct Cable Harness Factory
Electrical Harness Manufacturers For Custom Battery Pack
Electrical Wire & Cable Manufacturers
If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
