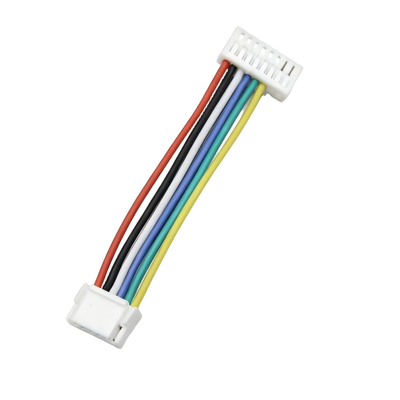

Flexible Custom Wire Harness | Anti-interference Twisted Pair GH1.25 to SH1.0 Adapter Cable Assembly Forward and Reverse Wiring Conversion Harness for FPV Drone | Made in China

Flexible Custom Wire Harness | Anti-interference Twisted Pair GH1.25 to SH1.0 Adapter Cable Assembly Forward and Reverse Wiring Conversion Harness for FPV Drone | Made in China

Key Features:

​

• GH1.25mm Connector End

1. Model: GH1.25 single-row female housing with locking latch
2. Pitch: 1.25mm standard micro pitch
3. Standard Pin Count: 8P
4. Housing Material: White flame-retardant PA66 plastic, heat-resistant and impact-resistant
5. Terminal: Tin-plated brass, stable conductivity, anti-oxidation for long-term vibration environment
6. Structural Design: Built-in locking buckle and anti-mismate polarization rib to prevent accidental disconnection and reverse insertion burn-out.

• SH1.0mm Connector End

1. Model: SH1.0 ultra-mini single-row female connector
2. Pitch: 1.0mm ultra-small compact pitch
3. Standard Pin Count: 6P
4. Housing Material: Thin lightweight white PA plastic, occupies minimal internal space of tiny drone frames
5. Terminal: Precision stamped tin-plated terminal, fits narrow PCB pads of micro sensors and gimbals
6. Anti-drop buckle design to avoid loose contact under high-frequency motor vibration.

• Inner Cable Body

1. Conductor: 26AWG multi-strand ultra-fine tinned copper wire, high flexibility
2. Insulation: Soft color-coded PVC, six colors (red, black, white, blue, green, yellow) to distinguish power positive, ground and signal circuits

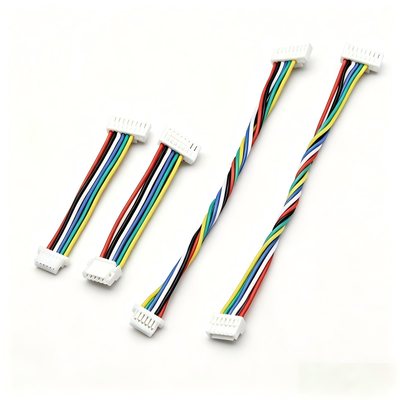

Two Wire Craft Options:

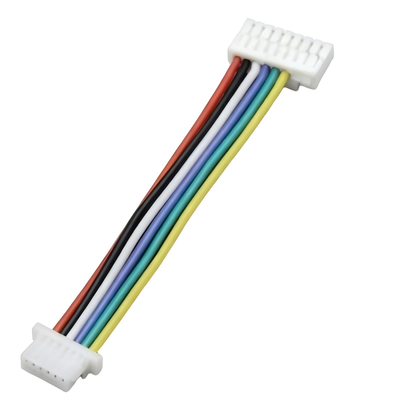

(1) Straight parallel wire: Thin, flat and space-saving for short-distance internal wiring

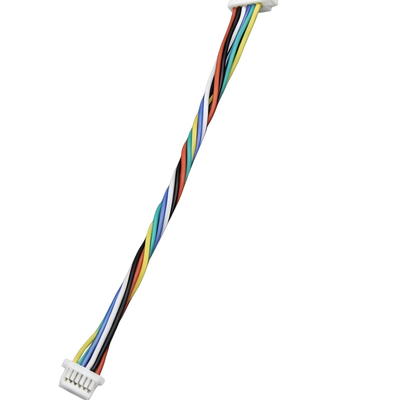

(2) Twisted paired differential wire: Multicolored wires mutually twisted to suppress electromagnetic interference
Custom Wire Sequence: Forward wiring or reverse wiring as required by customer circuit boards.

We can produce series of cable wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com

Important Notes:

1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
