Complete Technical Specifications:

• 3.5mm Banana Connector Spec

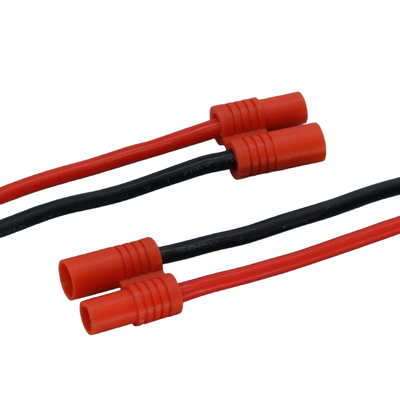

Model: 3.5mm bullet banana plug & socket pair
Contact Material: Pure copper with thick gold plating
Insulation Shell: High temperature resistant soft red PVC plastic, anti-slip rib surface
Rated Current: Continuous 30A peak 40A, suitable for medium-high power drone brushless motors
Mating Lifespan: Over 1000 times plug/unplug cycles without poor contact

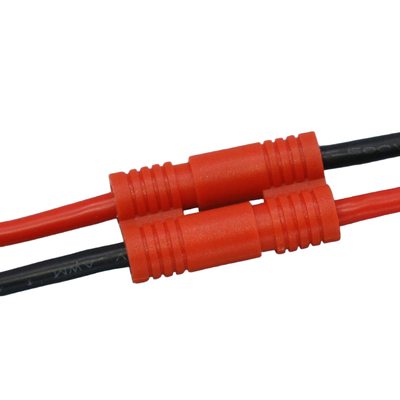

Feature: Anti-reverse insertion, tight lock fit, low heat generation under heavy load

• High-Current Wire Parameter

Standard Wire Gauge: 14AWG / 16AWG silicone wire (drone mainstream high-current wire)
Conductor: Multi-strand tinned oxygen-free copper, ultra-low resistance
Insulation Jacket: High temperature resistant silicone rubber (option PVC)
Operating Temp: Silicone wire -60℃ ~ 200℃, resistant to motor heat
Custom Length: 5cm / 10cm / 15cm / 20cm / custom length available
Color Code: Red = Positive, Black = Negative

• Craft Standard

Integrated high-pressure crimp between wire and banana terminal, strong pull resistance, wire will not fall off under violent vibration
Bare wire end full tin dipping to prevent copper wire scattering and short circuit

Core Product Features:

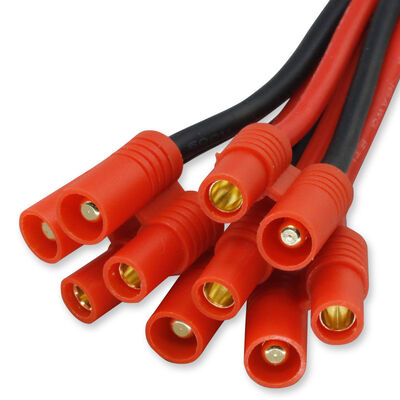

• Thick Gold-Plated 3.5mm Copper Terminals

Ultra-low contact resistance, effectively prevent overheating and melting under large drone operating current, anti-oxidation for long service life.

• High Temperature Silicone High-Current Wire

14/16AWG thick multi-strand wire bears 30A continuous current, soft silicone jacket resists motor high temperature, not easy to melt.

• Anti-Slip Insulated Red Plastic Housing

Safe isolation of positive and negative poles, prevent accidental short circuit; ribbed outer surface for easy plugging and unplugging.

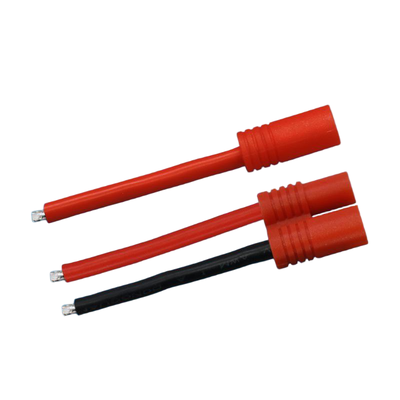

Two Optional Versions: Double Plug / Single Open Wire

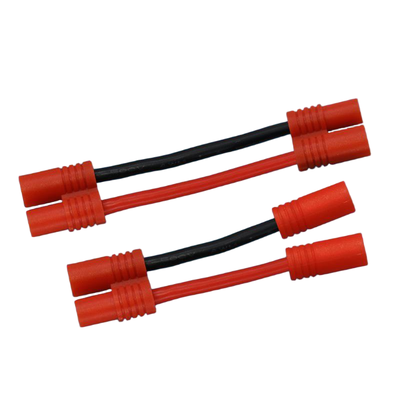

Double-head finished cable for direct motor-ESC plug connection; single-head bare wire for customer self-soldering on motors/batteries.

• Strong Vibration Resistance Crimp Craft

Tight terminal crimping structure, no loose contact during drone high-speed stunt flight, stable power output.

• Fully Customizable Service

Custom wire length, wire gauge, plug color, add heat shrink tube, OEM logo printing for drone factory bulk orders.
RoHS Compliant Eco-Friendly Materials
Non-toxic silicone and copper material, meets global export hobby electronic standards.

We can produce series of cable wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com

Important Notes:

1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
