Key Features:

​

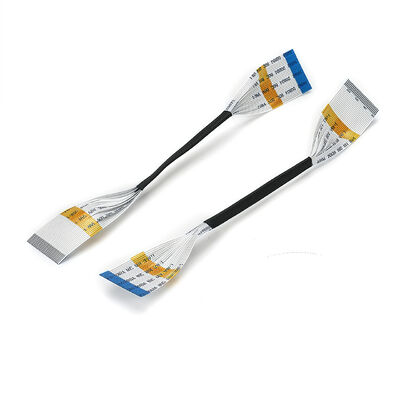

• Dual-end FFC Gold Finger Terminals

1. Both ends feature standard flat FPC connectors with exposed gold-plated contacts for direct plug-in to FPC/FFC sockets.
2. Yellow high-temperature PI reinforcement tape is attached to the bending zone, strengthening the root to avoid copper foil fracture during repeated bending or plugging.
3. One end is equipped with blue PI protective film to identify polarity and shield gold contacts; peel off before soldering.

• Middle Bundled Section Wrapped with Black Acetate Cloth

The wide flat cable is gathered into a narrow bundle and wrapped with black acetate fabric tape:

1. Compact bundled design greatly reduces overall volume, perfectly fits tiny inner space of FPV drones and mini cameras.
2. Acetate cloth features wear resistance, flame retardancy and high tensile strength, buffering vibration & pulling force to prevent cable breakage under harsh shock conditions.
3. Provides basic EMI shielding, isolating high-current power wires to eliminate signal noise and image distortion.

• Cable Body

White PET insulated flat flexible cable with parallel rolled copper foil conductors, ultra-thin, lightweight and flexible for tight-radius repeated bending.

We can produce series of cable wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

Key Advantages:

• Superior Shock & Tensile Resistance

The acetate cloth bundled middle section absorbs impact force, preventing cable snapping during high-speed flight, crash impact and intense vibration.

• Space-saving Compact Design

Wide flat cable is condensed into a slim bundle, easy to route inside narrow drone arms and mini camera housings.

• Effective Anti-EMI Performance

Acetate cloth layer blocks electromagnetic interference from motor power cables, eliminating video flicker, snow noise and signal dropout.

• Ultra-light & Ultra-thin Profile

Lighter and thinner than multi-strand silicone signal wires, adds negligible dead weight to FPV racing drones.

• Extended Bending Lifespan

Yellow PI reinforcement pads solve the common breakage issue at cable roots, ideal for devices with frequent reciprocating bending such as gimbal cameras and flip screens.

We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com

Important Notes:

1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
