Product Details:
|
| Product Name: | OEM ODM Custom Molex 2Pin Wire Harness | Material: | Tin-copper |
|---|---|---|---|
| Cable: | UL1007 18-24AWG | Cable Color: | Red Black And So On |
| Cable Length: | 150mm Can Be Customized | Samples: | Available |
| Keywords1: | Cable Assembly Harness |

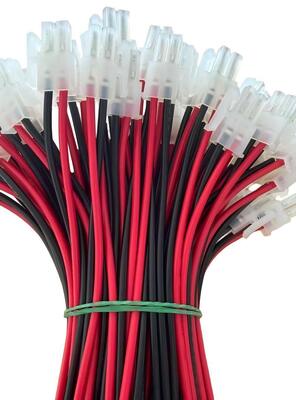

Molex Connector Wire Assembly | Custom Legth UL1007 2Pin Red and Black Male Terminal Wire Harness for Electric Toys | China Wiring Harness Factory
Product details:
| Product name | OEM ODM Custom Molex 2Pin Wire Harness |
| Connector Type | Molex, Male connector |
| Jacket Material | PVC |
| Conductor Material | Tin-copper |
| Size | 18~24WAG or can be customized |
| Shape | Spade crimp terminal |
| Pin | 2 pin |
| Operating Temperature | -20°C ~ +80°C |
| Length | 150mm can be customzied |
| Application | RC battery,Electronic,Smart home devices,Lighting system |
| Type | Custom-made Cabley Assembly |
| Place of Origin | Guangdong, China |
Product Introduction:
Terminal Interface End
The top features a 2Pin transparent male terminal (industry-standard 5.08mm Tamiya / EL4.5 series). It is constructed with a transparent nylon insulating housing and tinned brass male pins, ensuring smooth insertion/extraction, excellent electrical conductivity, and a secure locking fit with matching female sockets. It is commonly used for battery charge/discharge ports and equipment power input interfaces.
Wire Specifications
The harness uses industry-standard red and black color-coded wiring: red = positive (+), black = negative (-) to prevent reverse connection and short circuits.
The wire is UL-certified electronic wire, with standard gauges of 18AWG/20AWG/22AWG, and customizable lengths. The insulation is made of eco-friendly PVC, offering excellent temperature resistance and anti-aging performance for use in environments from -20°C to 80°C.
Terminal End
The wire tail is terminated with bare spade crimp terminals, which can be directly secured to screw terminals, PCB boards, battery tabs, and other connection points. This tool-free, screw-on installation ensures a stable, reliable connection without soldering.
Other wire harness:
Non-insulated ring terminal wire harness
PVC insulated ring terminal wire harness
Nylon insulated ring terminal wire harness
Ring tongue terminal wire harness
Toothed lock ring tongue terminal wire harness
Spot welding terminal wire harness
Non-insulated spade terminal (fork terminal) wire harness
PVC insulated spade terminal (fork terminal) wire harness
Nylon insulated spade terminal (fork terminal) wire harness
Distributor Strength : Wide Range of Products & BOM Service Available.
Product Quality : Over 90% of products are certified by international quality standards (e.g UL, RoHS).
Technical Support : Our technical team has over 10 years of industry experience, providing over 1,000 hours of technical support annually.
Supply Chain Management : 99% of orders are delivered on time, with inventory covering over 5,000 types of components.
Market Coverage : Serving over 30 countries and regions, with over 1500 industry clients.
Customer Service : Providing 24/7 customer support with a customer satisfaction rate of 98%.
Innovation Capability : Introducing at least 100 new products annually, staying updated with the latest technology
Please contact us if you need any help on wire harness, all can be made as your requirement.
Please contact us for price by email:Olinda@unitechelectronic.com, we will reply in 8 hrs.
