Product Details:
|
| Product Name: | ZH 1.5mm 3 Pin Male To Female Terminal Cable For Drone | Professional In: | Wire Connector Harness |
|---|---|---|---|
| Colour: | Red / Black / Yellow Can Be Customized | Working Temperature: | -20℃ ~ +80℃ |
| Category: | Male-to-Male / Male-to-Female / Female-to-Female / Single-Ended (Bare Wire) | Key Feature: | Custom Wiring Harness |
| Application: | RC Hobby, Drone, Motor, ESC | Contact Resistance: | ≤ 20mΩ |
| Insulation Resistance: | ≥ 100MΩ At 500V DC |

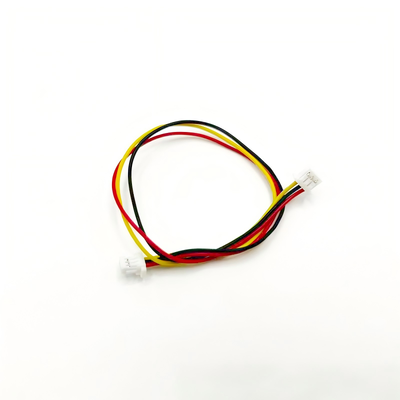

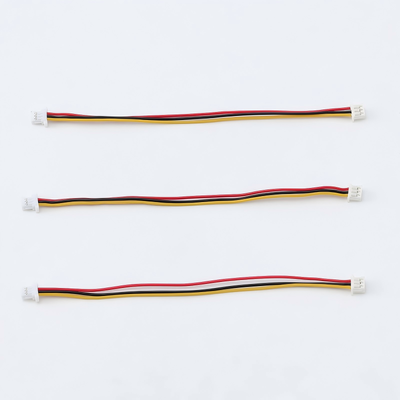

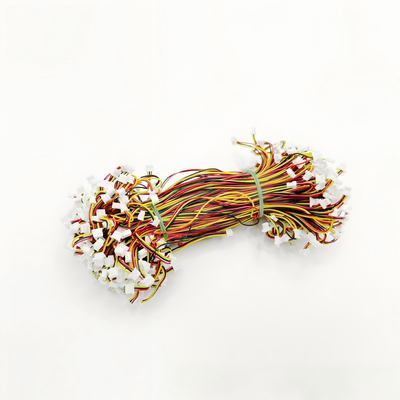

Custom Wiring Harness | ZH1.5mm 3Pin Connector Cable Terminal Cable Assembly for Small RC Aircraft | Custom Length & Gauge | Made in China
| Name | ZH 1.5mm 3 Pin Male to Female Terminal Cable for Drone |
| Connector | ZH1.5 |
| Insulation Material | Flexible PVC |
| Conductor Gauge | 26AWG / 28AWG (customizable 24AWG available for higher current) |
| Wire Construction | 4 Conductors (Red/Yellow/Blue/Black color-coded) |
| Cable Length | 50mm / 100mm / 150mm / 200mm (custom lengths from 30mm to 500mm supported) |
| Conductor Type | Tinned Oxygen-Free Copper (OFC) stranded wire |
| Application | Drones & RC Models, DIY & Prototyping |
|
Rated Voltage
|
150V AC/DC |
| Color Coding | Red/Yellow/Black (standard power/signal scheme) |
| Engineering service | OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection |
| Samples |
1.Samples confirmed first before mass production 2.Samples for free |
| MOQ | Small Order Can Be Accepted |
| Package | Inner:plastic bag outer:standard export cartons or custom package |
Wire Harness And Cable Features:
The 1.5mm pitch design offers a space-saving footprint, making it ideal for small electronics and tight installations where larger connectors cannot fit.
The built-in positive lock prevents accidental disconnection due to vibration or tugging, a critical feature for drones, portable devices, and moving machinery. It also prevents reverse insertion to protect components.
The industry-standard red/yellow/black color scheme aligns with common power and signal pinouts (VCC, GND, Signal), reducing wiring errors and simplifying troubleshooting.
Oxygen-free copper ensures excellent electrical conductivity, while tin plating prevents oxidation and corrosion, extending service life in humid or industrial environments.
The flexible PVC jacket resists cracking under repeated bending, making it suitable for tight routing inside device enclosures. It is also heat-resistant and RoHS-compliant.
Available in various configurations (male-to-male, male-to-female, single-ended bare wire) to suit different connection needs, from board-to-board links to custom wiring projects.
We can produce series of cable wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
We are Direct Cable Harness Factory
Electrical Harness Manufacturers For Custom Battery Pack
Electrical Wire & Cable Manufacturers
If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com
