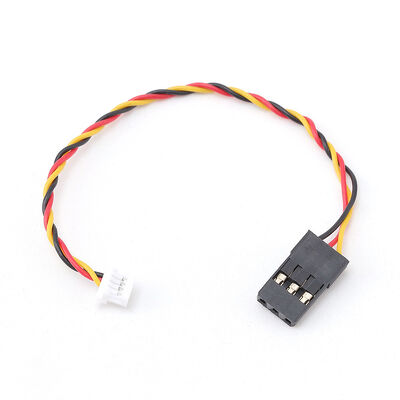

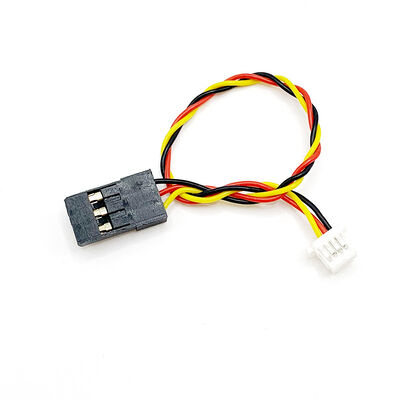

Connector Introduction:

• Black Plug: Standard JR 3Pin Servo Male (Compatible with Futaba)

1. Universal servo connector for RC receiver, ESC, drone flight controller, 2.54mm pin pitch
2. Standard pinout: Black = GND, Red = VCC Power, Yellow = Signal
3. Flame retardant ABS housing with locking tab to prevent loose disconnection
4. Gold-plated copper terminals for stable low-noise signal transmission
5. Fully compatible with all RC servos, FPV flight stacks, radio receivers

• White Socket: XH2.54 3Pin Female JST-Style Connector

1. Compact locking terminal widely used on PCB flight control boards, sensor modules, battery PCBs
2. Anti-reverse insertion design to avoid wrong polarity damage
3. Snap lock buckle ensures tight connection under vibration
4. Mainly equipped on drone FC, MCU development boards, mini drive modules

Wire Construction & Features :

• Twisted Triple Wire Anti-EMI Design

Red/Black/Yellow wires tightly twisted together, suppress electromagnetic interference from motors & ESC, eliminate servo jitter or signal loss during flight.

• High Flexible Multi-strand Cable

22/24/26AWG tinned copper PVC wire, bend-resistant, easy wiring inside narrow drone frames.

• 1:1 Standard Pinout Alignment

Consistent GND/VCC/SIG sequence on both ends, no risk of reversed wiring burning servos or flight controllers.

• Precision Machine Crimp Terminals

Ultra-low contact resistance, strong tensile resistance, stable performance under continuous vibration.

• Safe Flame Retardant Housings

Anti-oxidation gold-plated contacts, service life over 800 plug-unplug cycles.

• Customizable Size Options

Standard lengths: 5cm / 10cm / 15cm, support customized AWG, reversed gender cables, OEM private label.

We can produce series of cable wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com

Important Notes:

1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
