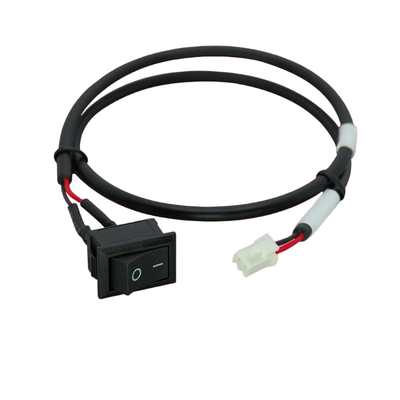

Electronic Wire Harness | Custom Pre Wired KCD1 2Pin Rocker Switch Harness, SPST ON OFF Boat Power Switch Cable with XH2.54-2P Locking Male Terminal for FPV Drone

Electronic Wire Harness | Custom Pre Wired KCD1 2Pin Rocker Switch Harness, SPST ON OFF Boat Power Switch Cable with XH2.54-2P Locking Male Terminal for FPV Drone

Complete Technical Specifications:

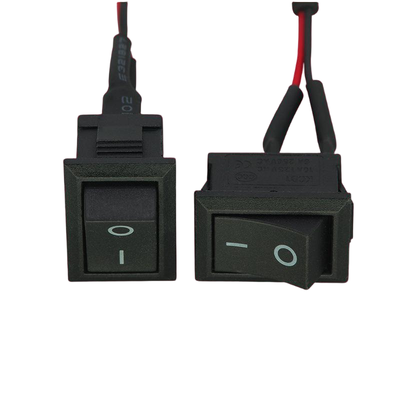

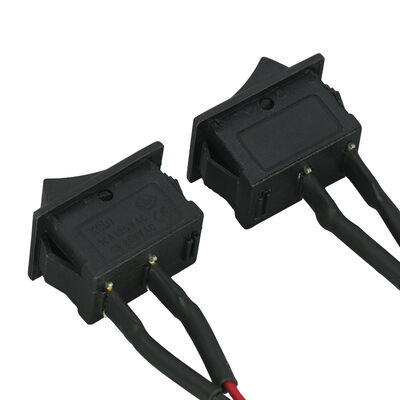

• KCD1 Rocker Switch

Pin count: 2 pins, single pole single throw (SPST) ON/OFF
Rated load: 10A 125VAC, 6A 250VAC
Housing material: Flame-retardant PA66 high-temperature plastic
Certifications: 3C, CE safety certified

• Power Wire

Standard gauge: 22AWG / 24AWG multi-strand tinned copper
Insulation: Eco-friendly PVC jacket, RoHS compliant
Customization: Support custom wire length, wire gauge, and sleeve accessories

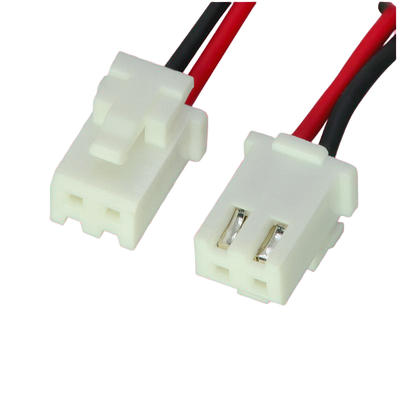

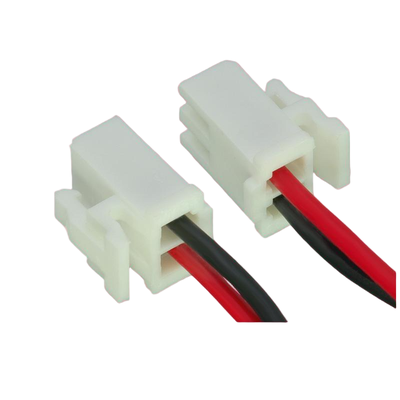

• Connector Terminal

Model: XH2.54-2P locking male header
Pin pitch: 2.54mm standard spacing
Feature: Anti-drop snap lock structure

Core Product Features:

1. Pre-assembled integrated harness: Factory pre-soldered and crimped, no extra welding required for assembly.
2. Locking XH terminal: Firm connection, anti-disconnect under long-term vibration, stable circuit transmission.
3. Dual-layer insulation protection: Heat shrink tube for switch pins + outer PVC wire insulation for safe operation.
4. Universal standard sizing: Common KCD1 mounting hole and XH2.54 connector for easy replacement.
5. Full customizable service: Adjust wire length, wire thickness, switch panel style, terminal gender, add cable ties or protective sleeves as requested.
6. Safety & eco compliance: Switch meets 3C/CE standards; all wires pass RoHS for global export sales.
7. Long service life: Millions of press cycles, crisp on/off operation without stuck rocker.

We can produce series of cable wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com

Important Notes:

1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
