Core Wire Specifications

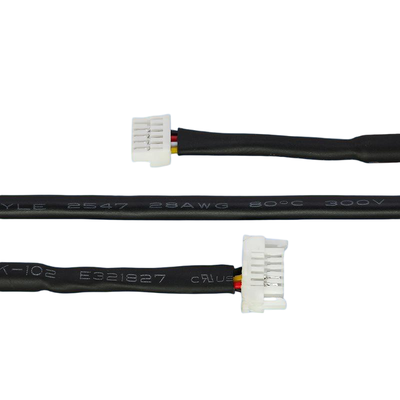

1. Wire Type: UL2547 Shielded Multi-conductor Electronic Wire
2. Wire Gauge: 28AWG
3. Rated Temperature: 80°C
4. Rated Voltage: 300V
5. Wire Certification: UL Certified, Marked with K-102, E321827 printing on outer jacket
6. Outer Jacket: Flexible black PVC insulation, wear-resistant, anti-interference, soft for wiring inside narrow equipment cavities
7. Internal Core Wires: Color-coded conductors (red, yellow and other custom wire sequences available) to avoid wiring errors during assembly

Connector Details

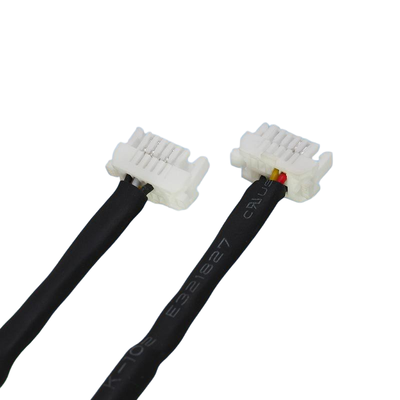

• End A: GH1.25-5P Connector

1. Pitch: 1.25mm
2. Pin Count: 5P
3. Structure: Horizontal wire-to-board plug with locking buckle
4. Material: White flame-retardant plastic housing, tin-plated brass terminals for stable conductivity, anti-drop locking design to prevent loose contact during vibration

• End B: SHLD-5P Mini Socket

1. Compact miniature terminal socket with tiny footprint, suitable for small circuit boards and compact module boards
2. Matching pin terminals with good oxidation resistance, stable signal transmission for low-current weak signal circuits

Wire Harness And Cable Features:

We can produce series of cable wire cable OEM ODM project:

1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness

We are Direct Cable Harness Factory

Electrical Harness Manufacturers For Custom Battery Pack

Electrical Wire & Cable Manufacturers

If you can't find the exact product you need in the pictures,please don't go away. Just contact me freely or send your sample and drawing to us.We'll get back to you right away. olinda@unitechelectronic.com

Important Notes:

1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.

2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.

3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.

4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.

5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
